  • By AMT
  • Call for Availability

Overview

Features

  • Cast iron construction and Viton seals with carbon and Ni-resist faces
  • 1 1/2in and 2in NPT port sizes
  • Self-priming to 20ft
  • 31 PSI maximum operating pressure
  • 160°F maximum temperature
  • 128 GPM maximum flow
  • 72ft maximum head
  • Exp. Proof Classes: Class 1, Group D, Class 2, Groups E,F,G or FG.
  • 0.5 to 2.0 HP single and three phase 3450 RPM motors

Description

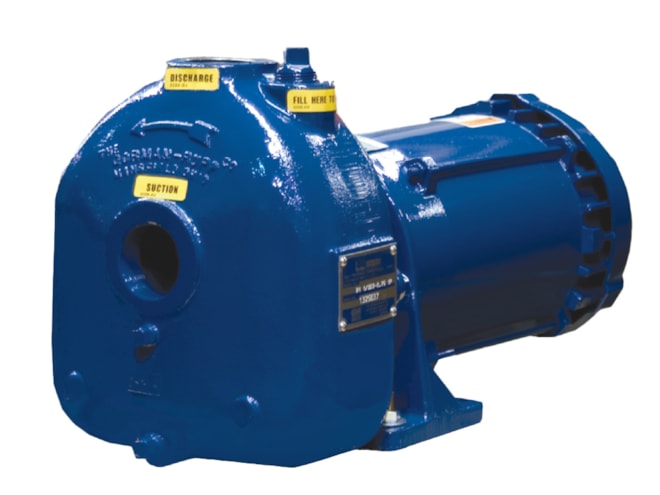

This AMT series of centrifugal pumps are coupled to a hazardous duty explosion proof motor. These pumps are designed for hazardous environments and/or for handling flammable liquids. The 1 1/2in and 2in NPT port sizes are available with single or three phase 3450 RPM motors. All models are self-priming and are equipped with Viton seals with carbon and Ni-resist faces capable of handling liquids of temperatures up to 160°F. Maximum flow is to 128 GPM and maximum operating pressure is up to 31 PSI. The explosion proof classes: Class 1, Group D, Class 2, Groups E,F,G or FG.

Applications

This product can be used in the following applications:
