Overview

Features

  • Cast iron construction with aluminum impeller
    • Viton mechanical seal with EPR/EPDM check valve and O-ring
  • 2in NPT suction and discharge ports
  • 180°F maximum temperature
  • 122 GPM maximum flow
  • 270ft maximum head at 116 PSI
  • Self-priming to 20ft
  • 7.5 to 10 HP TEFC, single and three phase motor options
  • Closed vane impeller

Description

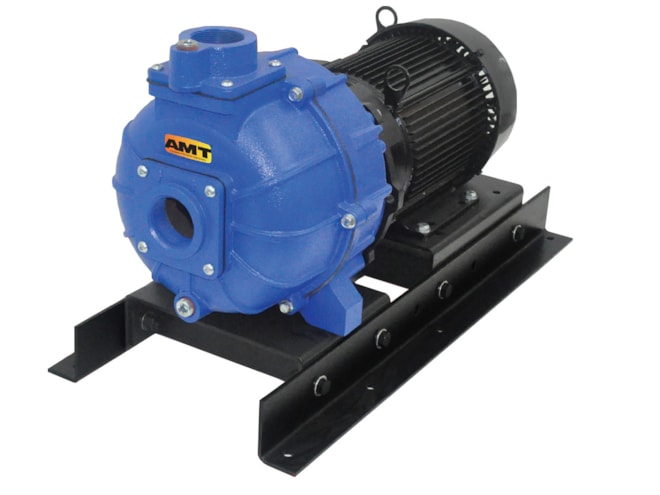

The AMT 480 Series is a line of self-priming, high pressure booster pumps with a two stage impeller design to provide additional pressure. All models feature cast iron construction with aluminum impellers and Viton mechanical seals. The built-in EPR/EPDM check valve allows for fast priming and is standard on all units. The fill and drain plugs allow for easy installation and servicing. These units are self-priming up to 20 feet and are suitable for use for high pressure applications such as dewatering, sprinkler/booster, irrigation, and fire protection. Units are close-coupled and are available in 7.5 to 10 HP TEFC electric motors.

Applications

This product can be used in the following applications:
