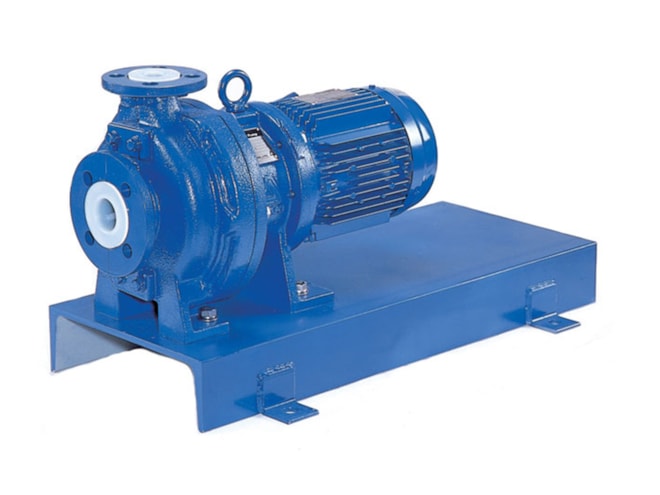

Iwaki MDM Series Lined Magnetic Drive Pump

A lined, magnetic drive pump series with a maximum capacity of 350 GPM and a maximum head of 350ft.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $4,780.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} per {{ boxQuantity }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs

Send details on your pump application.
A pump application specialist will contact you within 24 hours with information on the best pumps to suit your application.  If you require urgent assistance, then please call 1-802-255-4003.

Highlights...
  • By Iwaki
  • Usually ships in 3 to 4 weeks

Features

  • Ambient temperature range: 32 to 104°C (0 to 40°C)
  • Maximum operating temperature: up to 300°F
  • Ambient humidity range: 35 to 85% RH
  • Maximum capacity: 350 GPM
  • Maximum head: 350ft
  • Corrosion resistant ETFE and PFA internals
  • Non-contact bearing system
  • Spline/pinned impeller design
  • Motor sold separately

The Iwaki MDM series is a magnetic drive pump series with two materials of construction and mounting configurations to handle aggressive chemical and high purity applications. This series features a non-contact system design that enables the pumps to withstand dry running. They are suitable for use in chemical transfer applications on chemistries such as bleach and sulfuric acid.

The series contains corrosion resistant ETFE and PFA internal parts. The spline/pinned impeller design provides positive locking of impeller and inner magnet while still allowing for individual replacement of each part. The PFA material version also allow for maximum operating temperature of 302°F, whereas the ETFE material is suitable for a maximum temperature of 221°F. The motor for this pump is sold separately.

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

Iwaki House Motor
Iwaki House Motor

House motors required for use with select Iwaki Pumps series.

Starting at $465.00
