Overview

Features

  • Cast stainless steel construction
  • Viton mechanical seal, O-rings, and gaskets
  • 3in or 4in male NPT suction/discharge
  • Stainless steel self-cleaning semi-open impeller
  • Up to 3/4in maximum solids handling, depending on selection
  • 5 to 15 HP TEFC, single and three phase motor
  • Maximum head: up to 120ft
  • Maximum flow: up to 620 GPM
  • Maximum temperature: 200°F

Description

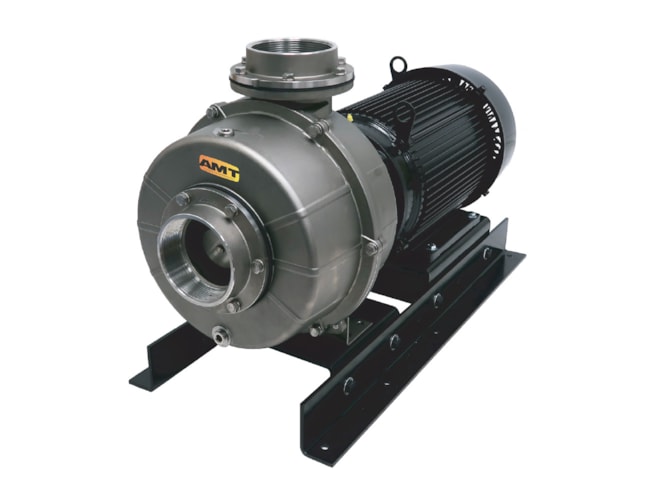

The AMT 6200 Series is a line of stainless steel self-priming pumps designed for a range of high capacity applications, such as dewatering, liquid transfer, chemical transfer, circulation, and drainage applications. The pumps have a stainless steel casing, bracket, seal plate, removable volute, and a clog resistant semi-open impeller. The pumps are designed to handle liquids with solids contents up to ½in spherical solids for the 3in models and ¾in spherical solids for the for 4in models.

Additionally, the pumps feature standard built in check valves for fast priming on all units. The fill and drain plugs allow for easy installation and servicing. Motor options for the pumps include a power rating between 5 to 15 HP and selections for single and three phases. The pumps have a maximum head of 120ft at 52 PSI, a maximum flow of up to 620 GPM, and can withstand temperatures up to 200°F.
