WDM Pumps AUE Series Frame Mounted Self Priming Pump

Final suction, free shaft pump with non-solid handling, discharge diameter up to 10in. Coupled with electric motor with up to 60 HP, frame mounted to steel baseplate.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs
Highlights...

Features

  • Pump type: final suction
    • Free shaft coupling
  • Casing & impeller: cast iron
  • Mechanical seal: ceramic / carbon / Buna-N
  • Steel fittings
  • Suction/discharge diameter: 1-1/2 to 10in NPT
  • Electric motor options:
    • Up through 15 HP: 3450 RPM, 2 poles
    • Up through 30 HP: 1150 RPM, 6 poles
    • Up through 60 HP: 1750 RPM, 4 poles
  • Fluid temperature: up to 70°C

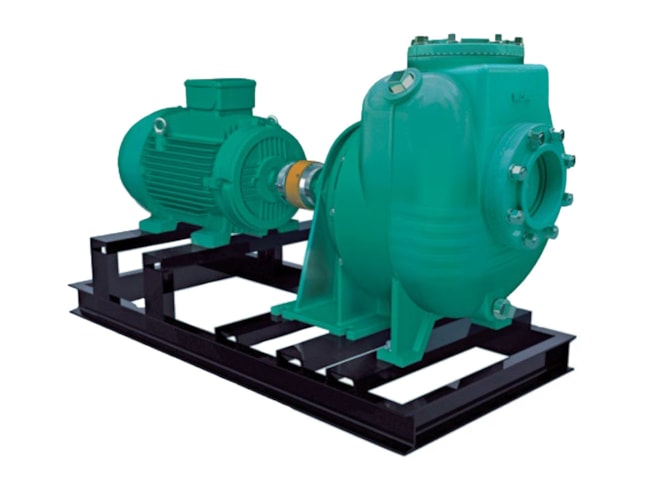

The WDM Pumps AUE Series Self Priming Pump is a final suction, free shaft model with non-solid handling, and NPT-threaded connections. This series is designed with a cast iron casing and semi-open impeller, steel shaft, stainless steel sleeve and mechanical seal. The suction and discharge diameter sizes range from 1-1/2in to 10in NPT. Units are coupled with an electric motor up to 60 HP. The pump casing and motor are frame-mounted to a steel baseplate.
