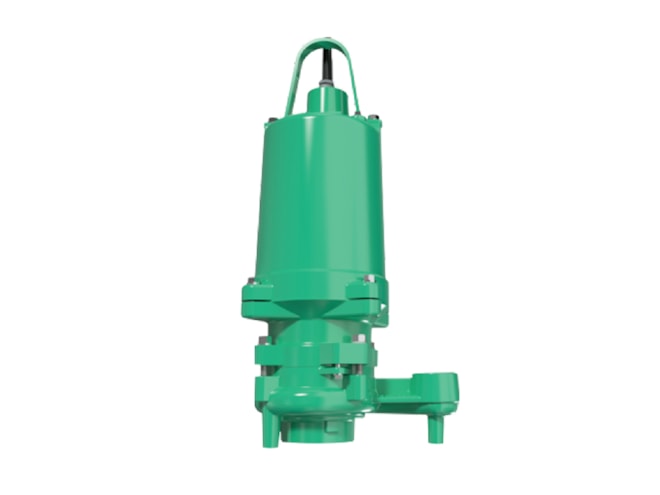

WDM Pumps NG Series Vertical Grinder Pump

Non-clog submersible pump with stainless steel grinder ring, cast iron body and mechanical seal. Connected to oil-filled electric motor with up to 7.5 HP, at 3600 RPM. Power cable included.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • Pump type: submersible, vertical discharge, grinder ring
  • Casing and impeller: Cast iron
  • Mechanical seal: Double, Type 1
  • Grinder ring: stainless steel
  • Discharge diameter: 1-1/4 or 2 inches (NPT)
  • Motor: electric, oil-filled, 3600 RPM
    • Single-phase: up to 2 HP
    • Three-phase: up to 7.5 HP
  • Voltage options: 230, 460 V
  • Close coupled
  • Fluid temperature: up to 120°F
  • 26.24 feet of motor power cable

The WDM Pumps NG Series Vertical Grinder Pump is a submersible, vertical discharge design with a stainless steel grinder for use in the water and wastewater industries. The casing and impeller are constructed with cast iron, and include a mechanical seal. The NG Series is connected to an electric, oil filled, single or three-phase motor with up to 7.5 HP, at 3600 RPM. 26.24 feet of motor power cable comes standard with each unit.

This product can be used in the following applications:
