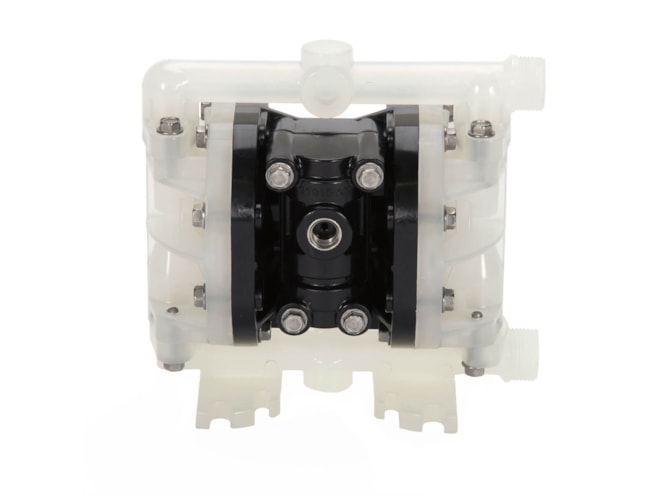

All-Flo A025 Air-Operated Double-Diaphragm Pump

5.7 GPM double-diaphragm pump with 23ft H2O maximum static suction head and 1/4in air inlet connection .

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $401.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Product Specs
Highlights...

Features

  • 1/4in liquid port size
  • 1/4in FNPT air inlet connection size
  • 5.7gpm (21.6lpm) max flow
  • 120 psi (8.2 bar) max air pressure
  • 23 ft-H2O (7.0 m-H2O) max static suction head
  • 14 ft-H2O (4.2 m-H2O) max suction lift (dry)
  • 28 ft-H2O (8.5 m-H2O) max suction lift (wet)
  • 1/16 in. (1.6 mm) max solids
  • 80dBA (with Muffler) sound level

The All-Flo A025 Air-Operated Double-Diaphragm Pump can be configured with solenoid pulse control to enable metering and dispensing application. Pumps are available in a polypropylene or PVDF housing. Polypropylene is suitable for use with a
wide variety of chemical applications. PVDF offers stronger chemical resistance to both acids and bases, while offering a higher
temperature and abrasion protection than polypropylene.

All-Flo Filter-Regulator-Gauge
All-Flo Filter-Regulator-Gauge

Adjusts and sets air pressure to a set value with a combination filter regulator and pressure gauge unit.

Starting at $103.30
All-Flo Wet End Repair Kit
All-Flo Wet End Repair Kit

Complete wet end repair kit for All-Flo Double Diaphragm Pumps.

Some Models in Stock
Starting at $119.00
Part Number Price Available
A025-SPP-SSPE-S70
Show Configuration
$400.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Click here to select options
