Neptune Direct Drive Air-Driven Mixer
Viscosity up to 250cps; volume up to 100gal.
Overview
Features
- 15 to 60in (381 to 1,524mm) shaft length
- 5/8 to 1in (16 to 25mm) shaft diameter
- 6 to 10in (152 to 254mm) propeller size
- 316SS propeller and shaft material
- Cast aluminum housing material
- Air motor
- Air consumption:
- 1 HP - 16 CFM (0.45 cmm) at 70 PSI (4.8 bar)
- 2 HP - 20 CFM (0.57 cmm) at 70 PSI (4.8 bar)
- 3 HP - 30 CFM (0.85 cmm) at 70 PSI (4.8 bar) (BC Series only)
Description
The Neptune Direct Drive Air-Driven Mixer includes an air control valve to allow for speed adjustment, and the motor may be stalled without damage.
The BF Series of flange-mounted mixers are available in both single and dual propellers. Single propeller models have one left-handed propeller, pumping downward in normal operation. Dual propeller models have one each left-hand and right-hand propellers, providing counter flow mixing.

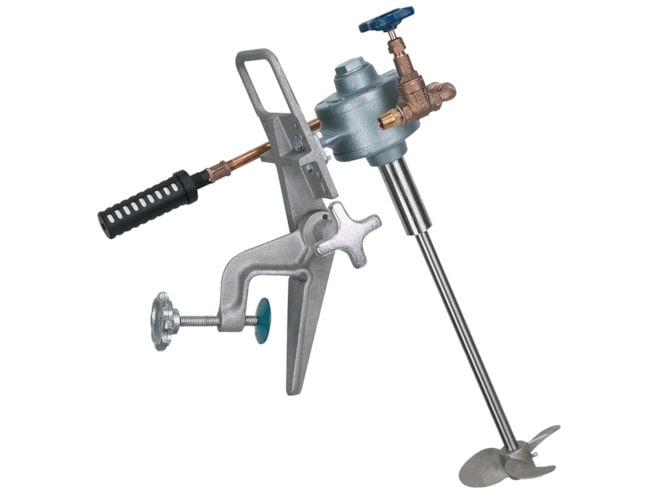

The BC Series of clamp-mounted mixers feature a knob and handle. The knob allows the clamp to be loosened without tools to adjust the shaft angle, and the handle allows for a firm grip on the mixer when adjusting the position. The BC Series also features three-blade left-hand marine propellers that pump downward in normal operation.
