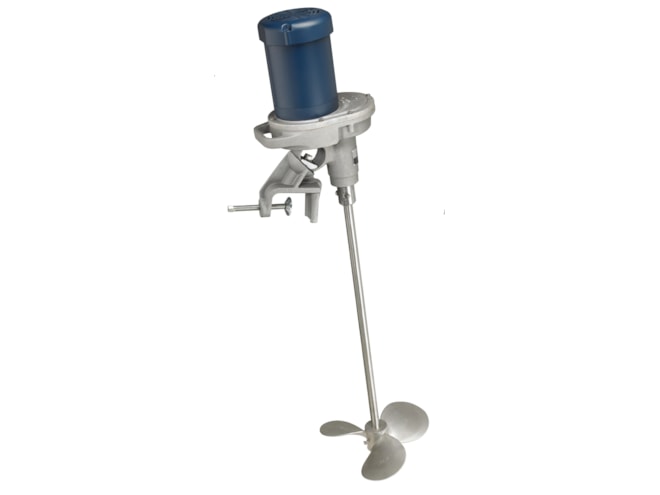

Neptune JD Series Large Direct Drive Mixer
Viscosity up to 100cps; volume up to 500gal.
Overview
Features
- 36 to 60in (914 to 1,524mm) shaft length
- 3/4 to 1in (19 to 25mm) shaft diameter
- 4 to 6in (102 to 152.4mm) propeller size
- Clamp mount, 1,750 rpm, grease lube
- Dual propeller option available
- Motors:
- Totally enclosed, fan-cooled
- Explosion proof (60in shaft, dual propeller only)
- Cast aluminum housing material
- 316SS standard propeller and shaft material
Description
The Neptune JD Series Large Direct Drive Mixer utilizes a housing that cannot leak oil. The mixer is best for applications handling viscosities under 1,000 cP and up to 500 gallons (1,893 liters).
The mixer exclusively uses square pitch 1.0 ration marine propellers. Flow coefficients and power consumption characteristics equal those of the best hydrofoil impeller designs. A vibration-absorbing pad is included as standard, and the shaft bearings are permanently lubricated. The mounting clamp uses an adjustable angle of entry via indexed ball-and-socket design, achieving various process results.
To select the right mixer for a given application, refer to Neptune's mixer selection guide.
