• 0.75 HP motor
    • 3450 RPM
    • 115/1/60 voltage
  • 2in NPT discharge port
  • 32ft max total dynamic head
  • 120°F max fluid temperature (continuous operation)
  • Cast iron construction (class 30)
  • 10-vane cast iron vortex impeller
  • Stainless steel shaft (420 series)
  • Carbon ceramic mechanical seal
  • Oil-filled sealed high torque motor
  • Auto-thermal overload reset
  • Mechanical swing-type submersible float switch
  • 20ft strain relief power able

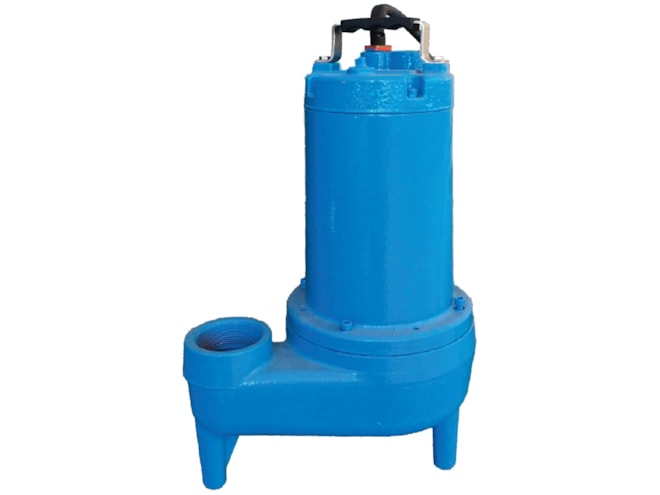

The Federal Pump PIB Plus Series submersible vortex pump is equipped with a 0.75 HP motor that runs at 3450 RPM to ensure optimal performance under demanding conditions. Equipped with a 2in NPT discharge port, the PIB Plus Series provides a seamless connection for easy installation. The pump's versatility extends to a maximum total dynamic head of 32ft, making it suitable for a wide range of demanding applications.

The PIB Plus Series features a cast iron construction that can withstand the rigors of continuous operation. The stainless steel shaft ensures longevity and corrosion resistance, while the 10-vane cast iron vortex impeller provides efficient pumping performance. The pump's internals feature a carbon ceramic mechanical seal, ensuring a secure and leak-free operation.


  • Commercial sewage
  • High-capacity sump
  • Water transfer
  • Effluent
