  • By Magnus
  • Usually ships in 1 week

Overview

Features

  • Models:
    • 2 HP: 3450 RPM
    • 3 HP: 1750 RPM
    • 5 HP: 1750 RPM
  • 3in and 4in NPT discharge ports (both included)
  • Handles up to 2.5in solids
  • Cast iron construction
  • 170°F max operating temperature
  • Normally open (N/O) moisture sensor output
  • Normally closed (N/C) thermal overload sensor output
  • 20ft power cord

Description

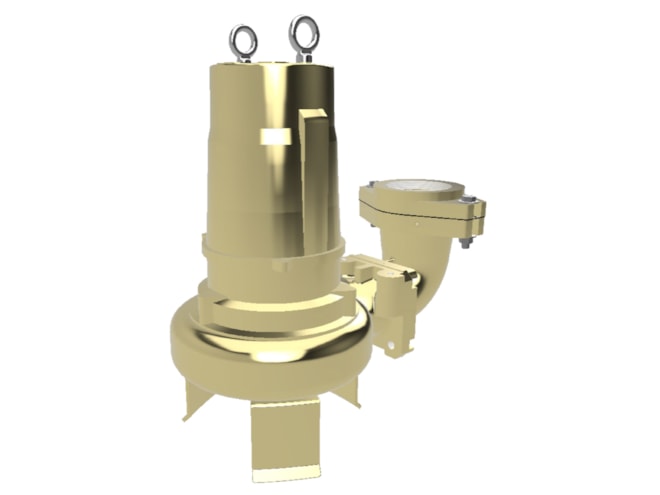

The Magnus DVT Series is a submersible chopper sewage pump that is reliable, solid-handling, and high-temperature resistant. It is uniquely designed with sharpened carbide-edged impellers and serrated chromium suction plates that shred incoming solids before pumping them out of a receiver. The DVT Series is equipped with a proprietary short-sweep discharge elbow, making it an industry leader in performance while also fitting tight installation requirements. This pump is suitable for both residential and commercial needs and comes in 2, 3, and 5 HP models.

Applications

This product can be used in the following applications:
