• 120 GPM max. flow
  • 74ft shutoff
  • 3in FNPT discharge
  • 1/2in spherical solids
  • Cast iron, class 30 seal plate
  • Air dry enamel paint
  • Buna-N O-rings
  • Seal:
    • Inboard
    • Single mechanical
    • 1in T6
    • Oil-filled reservoir
    • Silicon carbide/Viton
  • Single row, ball, oil-lubricated upper & lower bearings
  • 29in cord

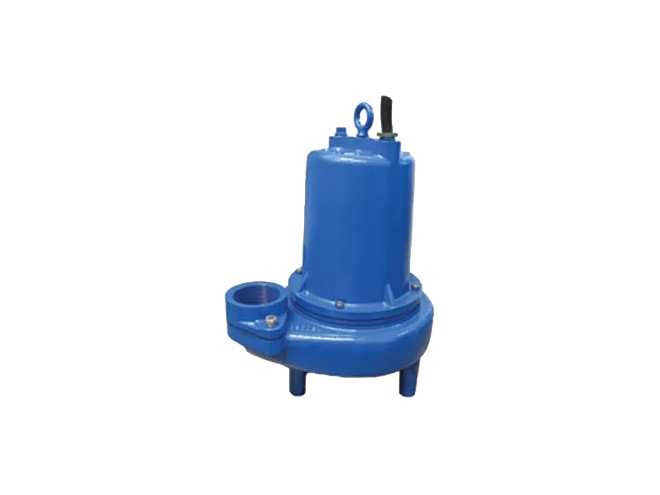

The Power-Flo Technologies PFCEH1024 1HP Effluent Pump is a submersible solids-handling sewage pump designed for typical raw sewage applications. It consists of a 2 vane, semi-open type, cast iron impeller, with a stainless steel shaft and hardware. The motor is constructed of Class B insulation, is oil-filled, and uses squirrel cage induction. It is single phase and uses a Permanent Split Capacitor (PSC) with overload protection. The pump includes a pressure grommet for sealing and strain relief.
