Need help? Call one of our pump experts at 1-802-255-4003. We’re open 8:00 am to 5:00 pm .
Starting Price: $1,306.96
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }} per {{ calcQuantity }} per {{ boxQuantity }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}

Overview

Features

  • 0.5 to 1 HP
  • 2in FNPT vertical, bolt-on flange discharge
  • 2in spherical solids
  • 104°F continuous liquid temperature
  • Voltage/phase options:
    • 115/1 (0.5 HP only)
    • 230/1 (0.5 HP only)
    • 200-230/1 (0.75 or 1 HP only)
    • 200-230/3
    • 460/3
  • Cast iron, Class 30 motor housing/volute
  • Cast iron, Class 30 impeller
  • Seal:
    • Inboard, single mechanical
    • 0.625in
    • Oil-filled reservoir
    • Carbon/ceramic/Buna-N with secondary exclusion seal

Description

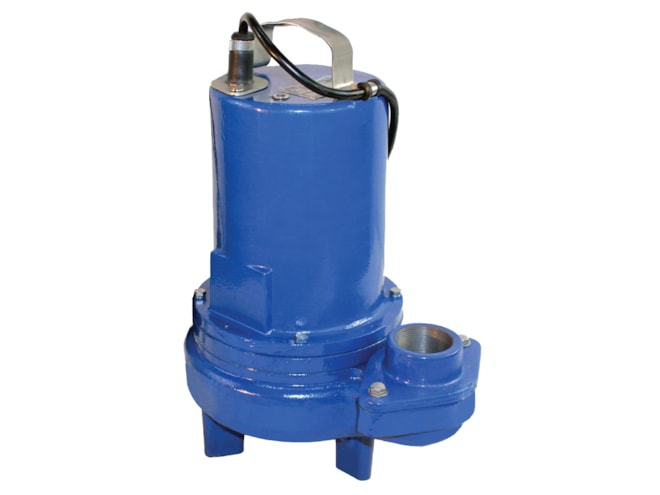

The Power-Flo Technologies PFSE Sewage Pump is a submersible pump designed for typical raw sewage applications. It consists of a 2-vane, open-type impeller with a stainless steel shaft and hardware. The motor is constructed of Class B insulation, is oil-filled and uses squirrel cage induction. It is available in both single and three phase. The single phase motor includes overload protection, while the three phase motor requires overload protection to be included in the control panel.

In Stock

Manufacturer Stock

Part Number Price Available
PFSE1074
$1,902.75 17 in stock
PFSE794
$1,652.91 14 in stock
PFSE544
$1,423.29 13 in stock
PFSE51
$1,306.96 12 in stock
PFSE1094
$2,239.27 9 in stock
PFSE1044
$2,239.27 4 in stock
PFSE52
$1,336.48 4 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for Availability". Click here to select options
