Power-Flo Technologies PFV512 Series Sewage Pump

3,450 RPM, choice of manual operation, wide angle float, or vertical float.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $1,064.42
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Power-Flo Technologies PFV512 Series Sewage Pump datasheet - Manual operation Power-Flo Technologies PFV512 Series Sewage Pump datasheet - Wide angle float Power-Flo Technologies PFV512 Series Sewage Pump datasheet - Vertical float
Highlights...

Features

  • 0.5 HP
  • 82 GPM max. flow
  • 22ft shut off
  • 2in FNPT vertical discharge
  • 2in spherical solids
  • 77°F continuous liquid temperature
  • Cast iron, Class 30 motor housing, volute, and impeller
  • Level control (not available with manual operation):
    • Wide angle or vertical
    • Mechanical (wide angle) or PVC (vertical)
    • Normally open (N/O)
    • 16/2, SJOW, 20ft cord with piggy-back plug
  • Seal:
    • Inboard, single mechanical
    • 0.5 in
    • Oil-filled reservoir
    • Carbon/ceramic/Buna-N with secondary exclusion seal

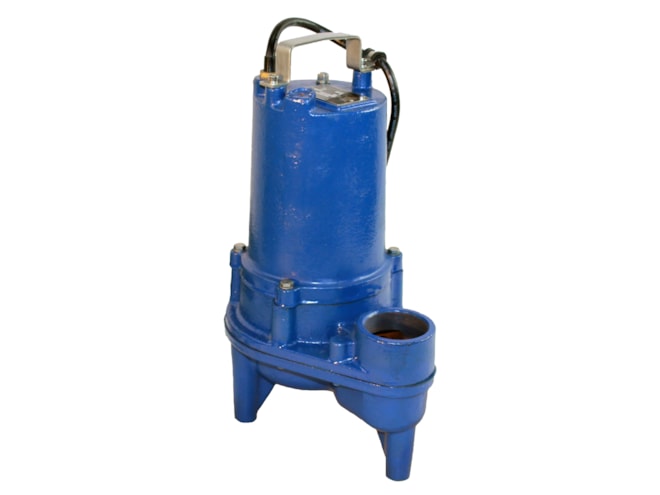

The Power-Flo Technologies PFV512 Series Sewage Pump is submersible and designed for typical raw sewage and septic tank/effluent applications. The pumps is composed of a multi-vane, vortex impeller with stainless steel shaft and hardware. The motor is composed of Class B insulation, is oil-filled, and uses squirrel cage induction. The motor is single phase with a permanent split capacitor (PSC), and includes overload protection. The pump is available in manual or automatic operation, with wide angle or vertical automatic options.

Manufacturer Stock

Part Number Price Available
PFV512A
Show Configuration
$1,130.24 7 in stock
PFV512
Show Configuration
$1,064.42 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for Availability". Click here to select options
