Overview

Features

  • 3, 5, or 7.5 HP
  • 2in FNPT vertical discharge, double seal
  • 160°F intermittent liquid temperature
  • 103 GPM max. flow
  • Manual operation
  • Voltage/phase options:
    • 230/1 (only available with 3 or 5 HP)
    • 230/3
    • 460/3
  • Cast iron, Class 30 motor housing, volute, and seal plate
  • Seal:
    • Tandem double mechanical
    • Oil-filled reservoir
    • Upper: 1-1/4in carbon/ceramic/Buna-N
    • Lower: 1-1/8in silicon carbide/silicon carbide/Viton
  • Single row, ball, lubricated upper and lower bearings

Description

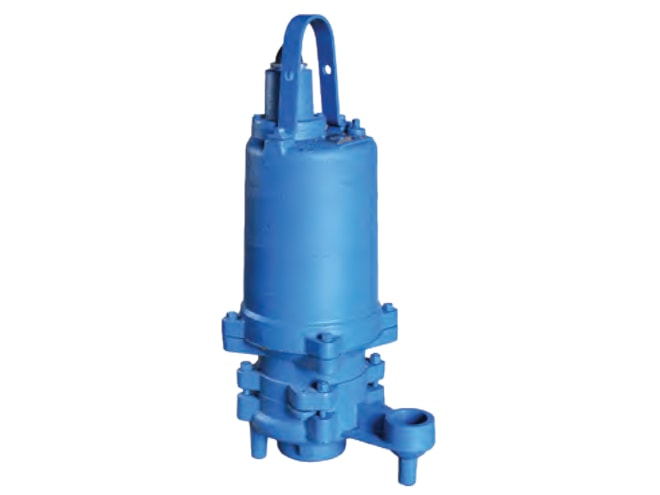

The Power-Flo Technologies PFG Series Grinder Pump is submersible and designed to reduce domestic, commercial, institutional, and light industrial sewage to a finely ground slurry. The pump is composed of a dynamically balanced, 12-vane, ISO G6.3, cast iron vortex impeller with pump out vanes on the back side, and stainless steel shaft, hardware, shredding ring, and cutter. The motor is composed of Class F insulation, is oil-filled, and uses squirrel cage induction. The motor is available as either a single phase or three phase. The single phase motor uses a capacitor start / capacitor run, and requires a starter or a control panel that includes the capacitors; overload protection is included in the single phase motor. The three phase is a dual voltage 230/460, and requires overload protection in the control panel.

The seal leak sensor is a two probe design, normally open (N/O) sensor that requires a relay in the control panel (included in PF panels). The temperature sensor is normally closed (NC), and requires a relay in the control panel (included in PF panels).

Applications

This product can be used in the following applications:

In Stock

Manufacturer Stock

Part Number Price Available
PFG3032
$6,533.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for Availability". Click here to select options
