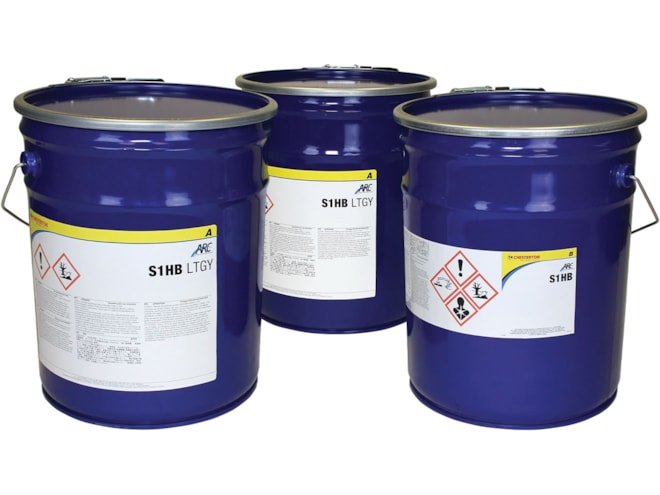

Chesterton ARC S1HB High Build Modified Epoxy Industrial Coating
Mineral-reinforced, edge-retentive epoxy barrier coating for single coat application on rough surfaces.

Overview
Features
- Light gray color
- Maximum temperature:
- 175°F (80°C) dry
- 125°F (52°C) wet
- 2.7Mpa tensile adhesion
- Approximate coverage:
- 1125ml cartridge covers 1.5m2 (16.1ft2)
- 60L kit covers 80m2 (850ft2)
- 600L kit covers 800m2 (8500ft2)
- Allows spark testing per NACE SP0188
- UV sensitive pigment for QC inspection
- Low VOC's and low odor
Bulk pricing is available, please contact Pump World for more information
Description
The Chesterton ARC S1HB High build Industrial Coating is a mineral-reinforced and amidoamine-cured modified epoxy lining designed to protect metallic and cementitious surfaces from corrosive exposures. It features high build capabilities with an edge-retentive nature that provides maximum coverage over hard 90° edges and corners with minimal thinning at the sharp edge. The amidoamine curative allows the ARC S1HB coating to cure and bond to damp and marginally prepared surfaces.
Application Areas
- Crude oil storage tanks
- Chemical storage tanks
- Thickener tanks
- Grit chambers
- Manholes
- Pipelines/penstocks
- Wastewater clarifiers
- Wet wells/junction boxes
- Acceptable for use with cathodic protection systems
Price per 1-10 units | Price per 11-20 units | Price per 21-30 units | Price per 31+ units | |
---|---|---|---|---|
1125ml Cartridge | $157 | $150 | $142 | $134 |
60L Kit | $3,141 | $2,983 | $2,827 | $2,669 |
Price per 1-2 units | Price per 3-4 units | Price per 5-6 units | Price per 7+ units | |
---|---|---|---|---|
600L Kit | $28,561 | $27,134 | $25,705 | $24,277 |
Documents
Spec Sheets
- Chesterton ARC S1HB Industrial Coating Datasheet (English) (363 KB)
- Chesterton ARC S1HB Industrial Coating Datasheet (Other Languages)
- Chesterton ARC S1HB Industrial Coating Safety Datasheet Part A (English) (185 KB)
- Chesterton ARC S1HB Industrial Coating Safety Datasheet Part B (English) (203 KB)
- Chesterton ARC S1HB Industrial Coating Safety Datasheet (Other Languages)
Manuals
- Chesterton ARC S1HB Industrial Coating Application Instructions (English) (88 KB)
- Chesterton ARC S1HB Industrial Coating Application Instructions (Other Languages)
Other
- Chesterton ARC S1HB Industrial Coating Case Studies
- Chesterton ARC S1HB Industrial Coating Spark Testing Bulletin (240 KB)
