Chesterton ARC MX1 Ceramic Reinforced Industrial Coating

Trowel-grade for protection against dry coarse particle erosion, wet slurry abrasion, and impact.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $1,103.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Chesterton ARC Industrial Coating Application Instructions (English) Chesterton ARC Industrial Coating Application Instructions (Other Languages)
Chesterton ARC MX1 Industrial Coating Datasheet (English) Chesterton ARC MX1 Industrial Coating Datasheet (Other Languages)
Highlights...

Features

  • Blue coating color
  • Maximum temperature:
    • 400°F (205°C) dry
    • 205°F (95°C) wet
  • 21.1Mpa tensile adhesion
  • Approximate coverage:
    • 6kg kit covers 0.37m2 (3.97ft2)
    • 20kg kit covers 1.23m2 (13.23ft2)
  • 100% solids, no VOCs, and no free isocyanates

Bulk pricing is available, please contact Pump World for more information.

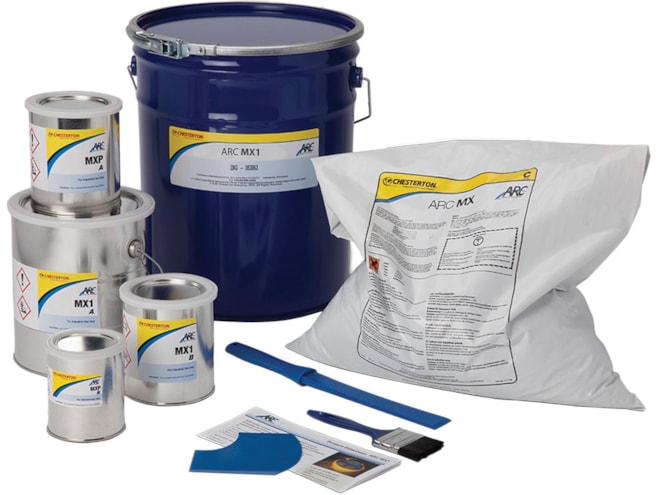

What's in the Box

  • MXP (primer) parts A and B
  • MX1 (top coat) parts A and B
  • MX (ceramic reinforcement) part C
  • Mixing and application instructions
  • Application tools

The Chesterton ARC MX1 Ceramic Reinforced Industrial Coating is a multi-component hybrid system for extreme sliding wear, abrasion, and impact resistance in applications with medium to coarse particle flow. The advanced hybrid polymer matrix withstands a broad pH range and repeated high-impact forces. The kit includes a high-tack primer that ensures surface bonding and allows vertical build capability to most substrates.

Applications

  • Pulverizers
  • Dredge pumps
  • Hoppers and silos
  • Conveyor screws
  • Pumps and pipe elbows
  • Fans/blowers/cyclones
  • Fan housings
  • Ceramic tile-lined chutes
  • Slurry pipelines and pumps
  • Ceramic tile deflector hoods
  • Rubber-lined deflector hoods
Price per 1-20 units Price per 21-40 units Price per 41-60 units Price per 61+ units
6kg Kit $1,103 $1,048 $993 $939
Price per 1-10 units Price per 11-20 units Price per 21-30 units Price per 31+ units
20kg Kit $2,836 $2,694 $2,551 $2,411
