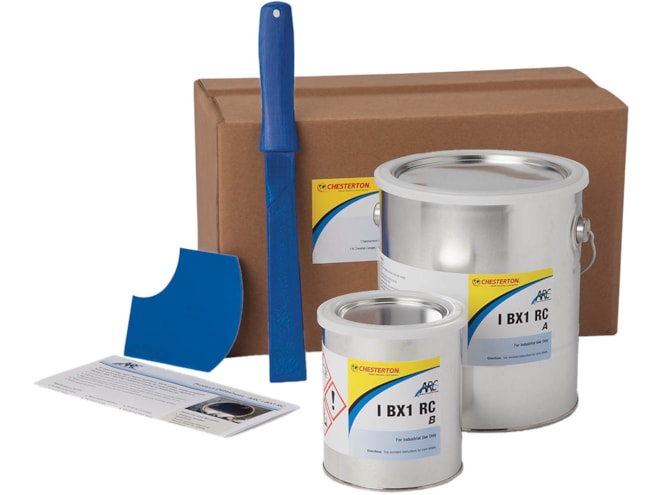

Chesterton ARC I BX1 RC Rapid Curing Industrial Coating

Epoxy/urethane hybrid resin with high impact resistance. Able to bond to metal, concrete, ceramic, and many plastics.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $283.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Chesterton ARC I BX1 RC Industrial Coating Application Instructions (English) Chesterton ARC I BX1 RC Industrial Coating Application Instructions (Other Languages)
Chesterton ARC I BX1 RC Industrial Coating Datasheet (English) Chesterton ARC I BX1 RC Industrial Coating Datasheet (Other Languages)
Highlights...

Features

  • Maximum temperature:
    • 400°F (205°C) dry
    • 203°F (95°C) wet
  • 23.5Mpa tensile adhesion
  • Brown coating color
  • Approximate coverage:
    • 1.5L kit covers 0.25m2 (2.69ft2)
    • 2.5L kit covers 0.42m2 (4.52ft2)​
  • 100% solids; no VOCs; no free isocyanates
  • Kit includes mixing and application instructions, plus tools
  • Easily applied with included trowel

Bulk pricing is available, please contact Pump World for more information.


The Chesterton ARC I BX1 RC Rapid Curing Industrial Coating offers high reverse and direct impact resistance in material handling systems. It features a reduced curing time of less than 3 hours, which allows faster turnaround time with repairs. This formulation is surface tolerant, easing use in field and shop applications with a high level of adhesion. The high ceramic loading level of the ARC I BX1 RC also offers extended service in severe sliding abrasion exposures.

Application Areas

  • Pipe elbows
  • Tile-lined chutes
  • Pulverized fuel lines
  • Vibrating screen decks
  • Rubber-lined agitators
  • FD/ID fan housing
  • Discharge plates
  • Rubber pump liners
  • Slurry pump cutwaters
Price per 1-20 units Price per 21-40 units Price per x-x units Price per x-x units
1.5L Kit $283 $269 $255 $240
2.5L Kit $393 $374 $354 $334
