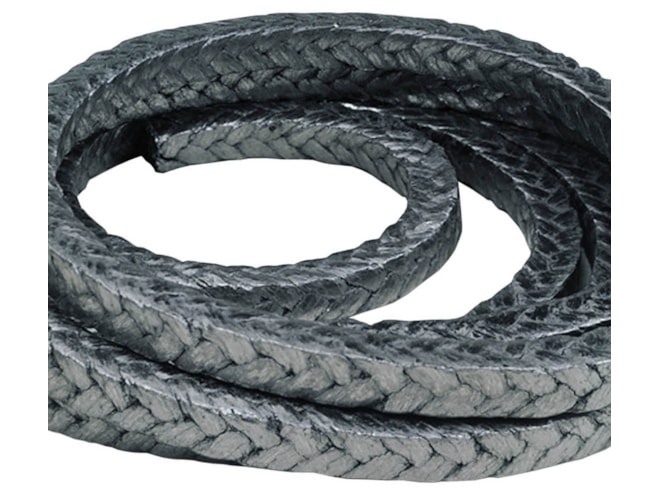

Chesterton 1400R Carbon Reinforced Graphite Packing

High-temperature, structural carbon fiber reinforcement, for use as anti-extrusion end rings or complete sets in higher pressures.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $570.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Chesterton 1400R Carbon Reinforced Graphite Packing Datasheet (English) Chesterton 1400R Carbon Reinforced Graphite Packing Datasheet (Other Languages)
Highlights...

Features

  • Pressure Limit:
    • 4000psig (275bar g) valves
    • 200psig (14bar g) pumps
  • 4000fpm shaft speed
  • Temperature Limit:
    • 1200°F (650°C) steam
    • 850°F (454°C) oxidizing atmosphere
  • pH 0-14 Chemical Resistance (except oleum, fuming nitric acid, and aqua regia)

The Chesterton 1400R Carbon Reinforced Graphite Packing is a reinforced braided graphite tape packing with a passive corrosion inhibitor. The carbon yarn provides reinforcement within the graphite tape yarn as well as the braided construction. 1400R packing forms a homogeneous mass under gland pressure, so that leakage is minimized in the packing set. The combination carbon/graphite set withstands higher shaft speeds while seeing limited shaft/stem friction. The structural carbon fiber reinforcement drastically lowers extrusion when 1400R packing sets are installed in valves at higher pressures.
