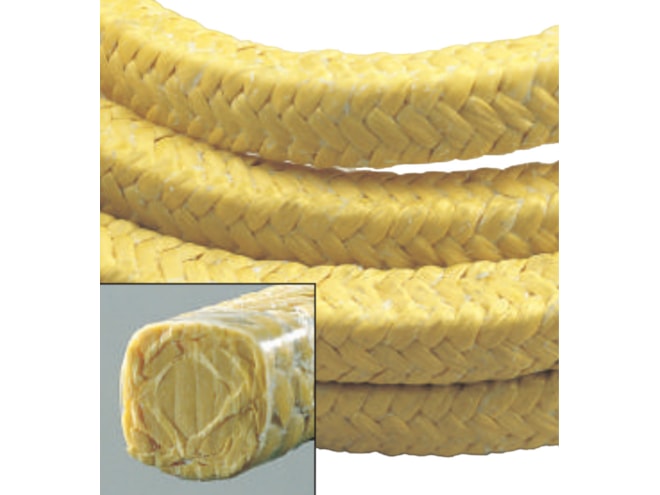

Chesterton 1740 Aramid Fiber Packing

Inter-braided aramid fiber yarn with PTFE and other lubricants anti-extrusion packing ideal for slurry applications .

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $361.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Highlights...

Features

  • 4mm to 25.4mm sizes available
  • 300psig (20bar g) Pressure Limit
  • 2000fpm Shaft Speed
  • 500°F (260°C) Temperature Limit
  • pH 3-11 Chemical Resistance

The Chesterton 1740 Aramid Fiber Packing is an inter-braided packing using aramid fiber yarn with PTFE and other lubricants. Each strand of yarn has been individually coated in order to dissipate heat. The 1740 can be installed as full sets to offer combined resistance to pressure, temperature, chemicals, and wear. The 1740 braided packing is also used as back-up rings for added extrusion resistance in abrasive applications.
