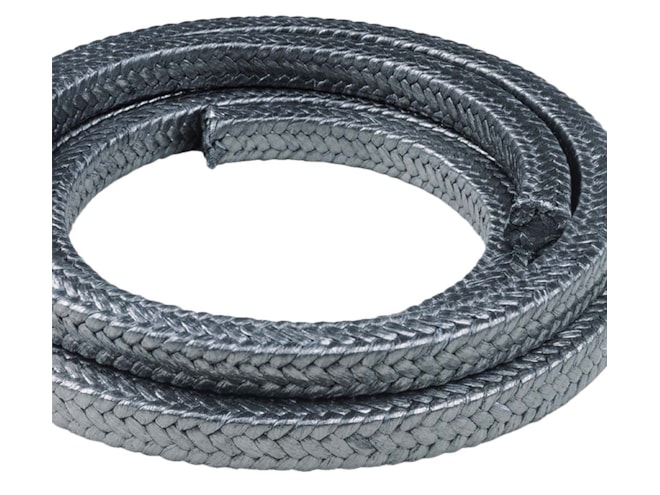

Chesterton 1760 PTFE/Graphite High Speed Pump Packing

PTFE yarn lubricated with graphite particles, lubricated with silicone oil for quick break-in, high chemical resistance.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $360.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Chesterton 1760 PTFE/Graphite High Speed Pump Packing Datasheet (English) Chesterton 1760 PTFE/Graphite High Speed Pump Packing Datasheet (Other Languages)
Highlights...

Features

  • 3/16in to 1in sizes available
  • 250psig (17bar g) Pressure Limit
  • 3600fpm Shaft Speed
  • 500°F (260°C) Temperature Limit
  • pH 0-14 Chemical Resistance

The Chesterton 1760 PTFE/Graphite High Speed Pump Packing is a unique packing consisting of a PTFE yarn lubricated with graphite particles. The finished packing is further lubricated with a special silicone oil for quick break-in. The 1760 packing features an extremely low coefficient of friction, lower than 100% PTFE fiber or combination PTFE fiber and PTFE suspensoid packings. The lubricants that are embedded in the tightly braided packings act as a heat transfer medium to dissipate heat generated at the pump shaft, allowing it to travel through the packing to the walls of the stuffing box. The 1760 packing also provides 13% less thermal expansion than pure PTFE packings for less frictional drag and lower heat at higher shaft speeds.
