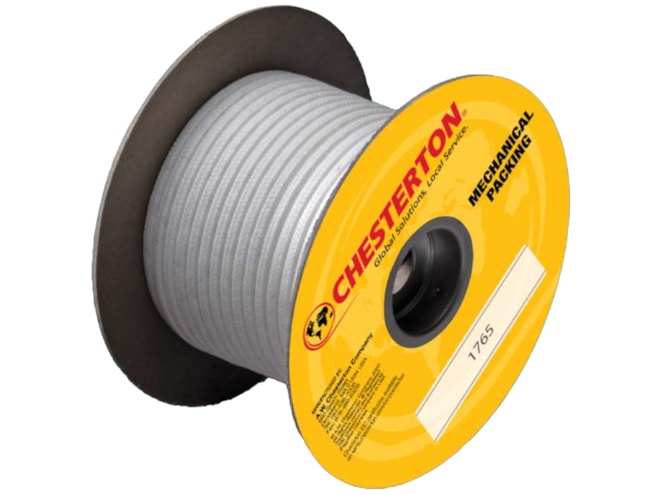

Chesterton 1765 Chemical Pump Packing

Expanded PTFE (ePTFE) yarn lubricated with graphite particles, lubricated with silicone oil for quick break-in, high chemical resistance.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $586.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Chesterton 1765 Chemical Pump Packing Manual (English) Chesterton 1765 Chemical Pump Packing Manual (Other Languages)
Chesterton 1765 Chemical Pump Packing Datasheet (English) Chesterton 1765 Chemical Pump Packing Datasheet (Other Languages)
Highlights...

Features

  • 3/16in to 1in sizes available
  • 300psig (20bar g) Pressure Limit
  • 2000fpm Shaft Speed
  • 500°F (260°C) Temperature Limit
  • pH 0-14 Chemical Resistance (except for Fluorine, CIF3 and related compounds, molten, and alkali metals)

The Chesterton 1765 Chemical Pump Packing is ideal for bleach pumps and other rotary applications requiring a white, non-staining packing. Constructed from chemically-resistant, expanded PTFE (ePTFE) material, the 1765 demonstrates higher speed performance capabilities than traditional PTFE materials for improved performance in a wide range of applications. The 1765 packing is designed to maintain process media integrity while controlling corrosive leakage.
