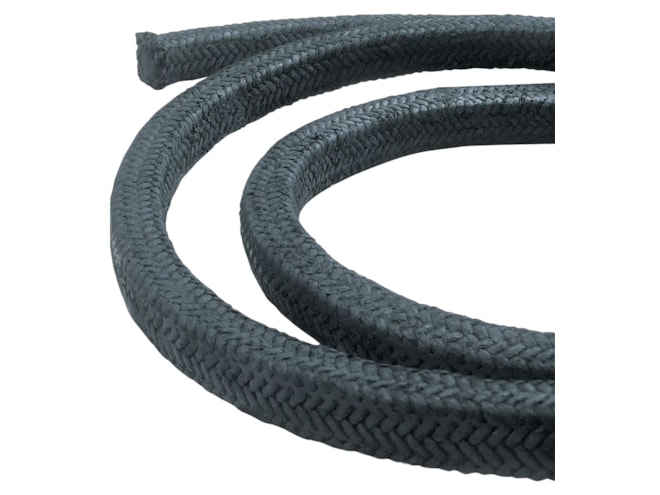

Chesterton 370 Heat-Dissipating Carbon Yarn Packing

Premium carbon yarn, heat-dissipating pump packing designed for high-temperature seal conditions.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $1,010.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • 1/8in to 1in sizes available
  • 500psig (34.5bar g) Pressure Limit
  • 3600fpm Shaft Speed
  • 600°F (315°C) Temperature Limit
  • pH 0-14 Chemical Resistance (except oleum, fuming nitric acid, aqua regia, and fluorine)

The Chesterton 370 Heat-Dissipating Carbon Yarn Packing is a high quality, carbon yarn packing with incorporated particles of pure graphite, high-temperature tolerant oils, and molybdenum disulfide which act as long-life lubricants and blocking agents. The low-friction carbon yarn has exceptional high-temperature capability in harsh applications and environments.

The 370 packing is ideal for applications such as pulpers, stock pumps, agitators, fan pumps, vacuum pumps, condensate pumps, screw feeders, and refiners.
