Grundfos 96082958 / CRN1-15 A-FGJ-A-V-HQQV 56C 60HZ

Name: Grundfos 96082958 / CRN1-15 A-FGJ-A-V-HQQV 56C 60HZ
Price: 2375.88 USD
Availability: OutOfStock

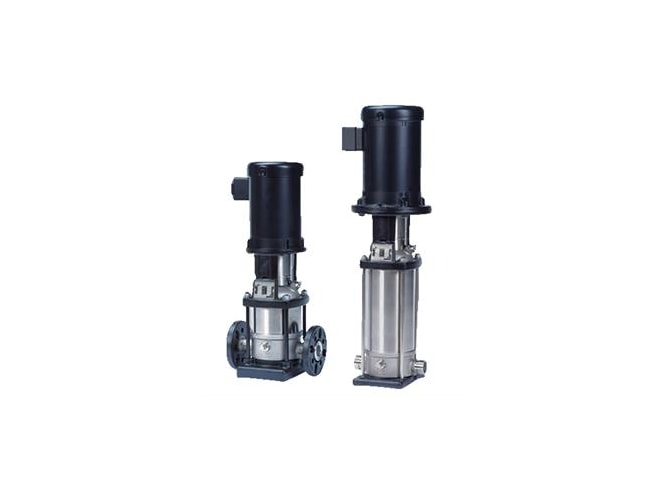

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Does not include motor.

$2,375.88

Part Numbers

CRN1-15 A-FGJ-A-V-HQQV 56C 60HZ
96082958
CRN 1-15 A-FGJ-A-V-HQQV

Highlights...

CRN1-15 A-FGJ-A-V-HQQV 56C 60HZ
By Grundfos
Call for Availability

Features

Rated pump speed: 3452 rpm
Rated flow: 9.69 US gpm
Rated head: 315.6 ft
Maximum head: 433.7 ft
Stages: 15
Impellers: 15
Number of reduced-diameter impellers: 0
Low NPSH: N
Pump orientation: Vertical
Shaft seal arrangement: Single
Primary shaft seal: HQQV
Code for shaft seal: HQQV
Approvals: CE
Curve tolerance: ISO9906:2012 3B
Pump version: A
Model: A
Base: Stainless steel
Impeller: Stainless steel
Material code: A
Code for rubber: V
Bearing: SIC
Maximum operating pressure: 362.59 psi
Max pressure at stated temperature: 363 psi / 194 °F
Type of connection: DIN / ANSI / JIS
Size of inlet connection: DN 25/32
Size of suction port: 1 1/4 inch
Size of outlet connection: DN 25/32
Size of outlet port: 1 1/4 inch
Pressure rating for connection: PN 25
Flange rating inlet: 300 lb
Flange size for motor: 56C
Connect code: FGJ
Pumped liquid: Water
Liquid temperature range: -4 .. 194 °F
Selected liquid temperature: 68 °F
Density: 62.29 lb/ft³
Motor standard: NEMA
Power (P2) required by pump: 2 HP
Frequency converter: None
Net weight: 45.3 lb
Gross weight: 59.8 lb
Shipping volume: 4.94 ft³
Country of origin: US
Custom tariff no.: 8413.70.2040

Vertical, multistage centrifugal pump with suction and discharge ports on the same level. Pump materials in contact with the liquid are in high-grade stainless steel (AISI 316).

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges.
