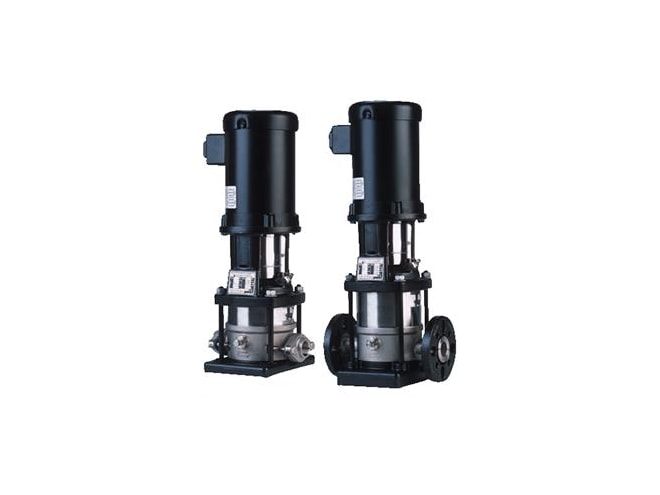

Grundfos CRI5-10 A-CA-A-E-HQQE 182/184TC 60HZ

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline).

$1,697.80
Effective May 5th, 2025 Grundfos has added a 5% surcharge for all products. The surcharge will appear as a separate line item on the order.
Part Numbers
  • CRI5-10 A-CA-A-E-HQQE 182/184TC 60HZ
  • 96084429
  • CRI 5-10 A-CA-A-E-HQQE
Highlights...
  • CRI5-10 A-CA-A-E-HQQE 182/184TC 60HZ
  • By Grundfos
  • Call for Availability

Features

  • Rated pump speed: 3461 rpm
  • Rated flow: 30.4 US gpm
  • Rated head: 241.8 ft
  • Maximum head: 326.8 ft
  • Actual impeller diameter: 2.88 in
  • Stages: 10
  • Impellers: 10
  • Number of reduced-diameter impellers: 0
  • Low NPSH: N
  • Pump orientation: Vertical
  • Shaft seal arrangement: Single
  • Primary shaft seal: HQQE
  • Code for shaft seal: HQQE
  • Approvals: CE
  • Approvals for drinking water: NSF/ANSI 61
  • Curve tolerance: ISO9906:2012 3B
  • Pump version: A
  • Model: A
  • Base: Stainless steel
  • Impeller: Stainless steel
  • Material code: A
  • Code for rubber: E
  • Bearing: SIC
  • Maximum operating pressure: 362.59 psi
  • Max pressure at stated temperature: 363 psi / 250 °F
  • Type of connection: FlexiClamp
  • Size of inlet connection: DN 32
  • Size of suction port: 1 1/4 inch
  • Size of outlet connection: DN 32
  • Size of outlet port: 1 1/4 inch
  • Pressure rating for connection: PN 25
  • Flange size for motor: 182TC
  • Connect code: CA
  • Pumped liquid: Water
  • Liquid temperature range: -4 .. 248 °F
  • Selected liquid temperature: 68 °F
  • Density: 62.29 lb/ft³
  • Motor standard: NEMA
  • Frequency converter: None
  • DOE Pump Energy Index CL: 0.89
  • Net weight: 39.1 lb
  • Gross weight: 53.6 lb
  • Shipping volume: 4.94 ft³
  • Country of origin: US
  • Custom tariff no.: 8413.70.2040
Vertical, multistage centrifugal pump with suction and discharge ports on the same level. The pump head and base are in cast iron. All wetted parts are in stainless steel (EN 1.4301) (AISI 304)

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via FlexiClamps.
