Grundfos 96084160 / CR5-6 A-B-A-V-HQQV 56C 60HZ

Name: Grundfos 96084160 / CR5-6 A-B-A-V-HQQV 56C 60HZ
Price: 1189.76 USD
Availability: OutOfStock

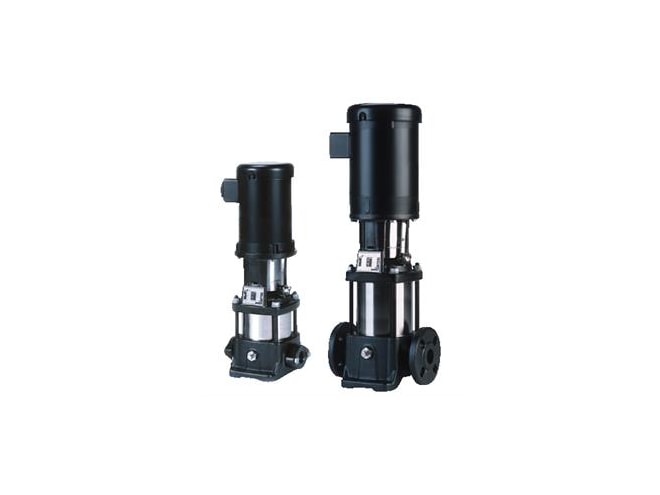

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Does not include motor.

$1,189.76

Effective May 5th, 2025 Grundfos has added a 5% surcharge for all products. The surcharge will appear as a separate line item on the order.

Part Numbers

CR5-6 A-B-A-V-HQQV 56C 60HZ
96084160
CR 5-6 A-B-A-V-HQQV

Highlights...

CR5-6 A-B-A-V-HQQV 56C 60HZ
By Grundfos
Call for Availability

Features

Rated pump speed: 3452 rpm
Rated flow: 30.4 US gpm
Rated head: 147.6 ft
Maximum head: 203.8 ft
Actual impeller diameter: 2.88 in
Stages: 6
Impellers: 6
Number of reduced-diameter impellers: 0
Low NPSH: N
Pump orientation: Vertical
Shaft seal arrangement: Single
Primary shaft seal: HQQV
Code for shaft seal: HQQV
Approvals: CE
Curve tolerance: ISO9906:2012 3B
Pump version: A
Model: A
Base: Cast iron
Impeller: Stainless steel
Material code: A
Code for rubber: V
Bearing: SIC
Maximum operating pressure: 232.06 psi
Max pressure at stated temperature: 232 psi / 194 °F
Type of connection: Oval / NPT(F)
Size of suction port: 1 1/4 inch
Size of outlet port: 1 1/4 inch
Pressure rating for connection: PN 16
Flange size for motor: 56C
Connect code: B
Pumped liquid: Water
Liquid temperature range: -4 .. 194 °F
Selected liquid temperature: 68 °F
Density: 62.29 lb/ft³
Motor standard: NEMA
Power (P2) required by pump: 2 HP
Frequency converter: None
DOE Pump Energy Index CL: 0.89
Net weight: 35 lb
Gross weight: 46 lb
Shipping volume: 4.94 ft³
Country of origin: US
Custom tariff no.: 8413.70.2040

Vertical, multistage centrifugal pump with suction and discharge ports on the same level. The pump head and base are in cast iron. All other wetted parts are in stainless steel (EN 1.4301)(AISI 304)

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via oval flanges with internal NPT threads.
