Grundfos CR20-2 A-B-A-E-HQQE 182/184TC 60 HZ

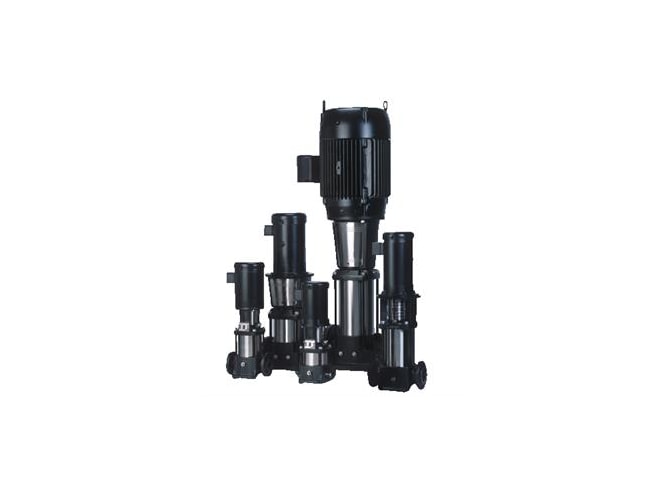

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline).

$2,420.60
Effective May 5th, 2025 Grundfos has added a 5% surcharge for all products. The surcharge will appear as a separate line item on the order.
Part Numbers
  • CR20-2 A-B-A-E-HQQE 182/184TC 60 HZ
  • 96127047
  • CR 20-2 A-B-A-E-HQQE
Highlights...
  • CR20-2 A-B-A-E-HQQE 182/184TC 60 HZ
  • By Grundfos
  • Call for Availability

Features

  • Rated pump speed: 3461 rpm
  • Rated flow: 111 US gpm
  • Rated head: 104 ft
  • Maximum head: 136.5 ft
  • Actual impeller diameter: 4.13 in
  • Stages: 2
  • Impellers: 2
  • Number of reduced-diameter impellers: 0
  • Low NPSH: N
  • Pump orientation: Vertical
  • Shaft seal arrangement: Single
  • Primary shaft seal: HQQE
  • Code for shaft seal: HQQE
  • Approvals: CE
  • Approvals for drinking water: NSF/ANSI 61
  • Curve tolerance: ISO9906:2012 3B
  • Pump version: A
  • Model: A
  • Base: Cast iron
  • Impeller: Stainless steel
  • Material code: A
  • Code for rubber: E
  • Bearing: SIC
  • Maximum operating pressure: 145.04 psi
  • Max pressure at stated temperature: 145 psi / 250 °F
  • Type of connection: Oval / NPT(F)
  • Size of suction port: 2 inch
  • Size of outlet port: 2 inch
  • Pressure rating for connection: PN 10
  • Flange size for motor: 182TC
  • Connect code: B
  • Pumped liquid: Water
  • Liquid temperature range: -4 .. 248 °F
  • Selected liquid temperature: 68 °F
  • Density: 62.29 lb/ft³
  • Motor standard: NEMA
  • Frequency converter: None
  • DOE Pump Energy Index CL: 0.91
  • Net weight: 83.8 lb
  • Gross weight: 101 lb
  • Shipping volume: 4.94 ft³
  • Country of origin: US
  • Custom tariff no.: 8413.70.2040
Vertical, multistage centrifugal pump with suction and discharge ports on the same level. The pump head and base are in cast iron. All other wetted parts are in stainless steel (EN 1.4301)(AISI 304)

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via oval flanges with internal NPT threads.
