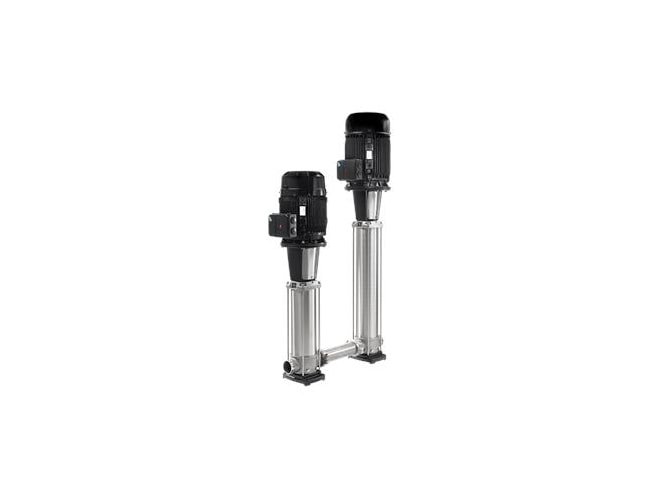

Grundfos CRN15-16 S-P-A-V-HQQV 3x380-415D 50 HZ

Vertical, non-self-priming, high-pressure multistage centrifugal pump with suction and discharge ports on the same level (in-line) enabling installation in a horizontal one-pipe system.

$12,670.84
Effective May 5th, 2025 Grundfos has added a 5% surcharge for all products. The surcharge will appear as a separate line item on the order.
Part Numbers
  • CRN15-16 S-P-A-V-HQQV 3x380-415D 50 HZ
  • 96512214
  • CRN 15-16 S-P-A-V-HQQV
Highlights...
  • CRN15-16 S-P-A-V-HQQV 3x380-415D 50 HZ
  • By Grundfos
  • Call for Availability

Features

  • Pump speed on which pump data is based: 2923 rpm
  • Rated flow: 74.8 US gpm
  • Rated head: 594.2 ft
  • Stages: 16
  • Impellers: 16
  • Low NPSH: N
  • Primary shaft seal: HQQV
  • Code for shaft seal: HQQV
  • Approvals: CE,EAC,UKCA,SEPRO
  • Curve tolerance: ISO9906:2012 3B
  • Pump version: S
  • Model: A
  • Pump housing: Stainless steel
  • Impeller: Stainless steel
  • Material code: A
  • Code for rubber: V
  • Maximum ambient temperature: 140 °F
  • Max pressure at stated temperature: 725 psi / 194 °F
  • Type of connection: PJE
  • Size of connection: 2 inch
  • Flange size for motor: FF300
  • Connect code: P
  • Pumped liquid: Water
  • Liquid temperature range: -4 .. 194 °F
  • Selected liquid temperature: 68 °F
  • Density: 62.29 lb/ft³
  • Motor standard: IEC
  • Motor type: 160MD
  • Rated power - P2: 20 HP
  • Power (P2) required by pump: 20 HP
  • Main frequency: 50 Hz
  • Rated voltage: 3 x 380-415D/660-690Y V
  • Rated current: 28,0-26,0/16,2-15,6 A
  • Starting current: 660-780 %
  • Cos phi - power factor: 0.89-0.87
  • Rated speed: 2930-2950 rpm
  • IE Efficiency class: IE3
  • Motor efficiency at full load: 91.9 %
  • Motor efficiency at 3/4 load: 92.4-92.7 %
  • Motor efficiency at 1/2 load: 92.4-92.3 %
  • Number of poles: 2
  • Enclosure class (IEC 34-5): 55 Dust/Jetting
  • Insulation class (IEC 85): F
  • Built-in motor protection: PTC
  • Motor Number: 85905162
  • Frequency converter: None
  • Minimum efficiency index, MEI ≥: 0.70
  • Net weight: 322 lb
  • Gross weight: 450 lb
  • Custom tariff no.: 8413.70.2040
Vertical, multistage centrifugal pump with suction and discharge ports on the same level. The pump head and base are in cast iron. All other wetted parts are in stainless steel (EN 1.4301)

Vertical, non-self-priming, high-pressure multistage centrifugal pump with suction and discharge ports on the same level (in-line) enabling installation in a horizontal one-pipe system. The chamber stack is turned upside-down to ensure that the shaft seal is not affected by the high pump discharge pressure. Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling and easy service and access. Power transmission is via a split coupling. Pipe connection is via PJE (Victaulic®) couplings.
