Grundfos 96521804 / CRN5-24 S-P-T-V-HQQV 3x480D 60Hz

Name: Grundfos 96521804 / CRN5-24 S-P-T-V-HQQV 3x480D 60Hz
Price: 5830.76 USD
Availability: OutOfStock

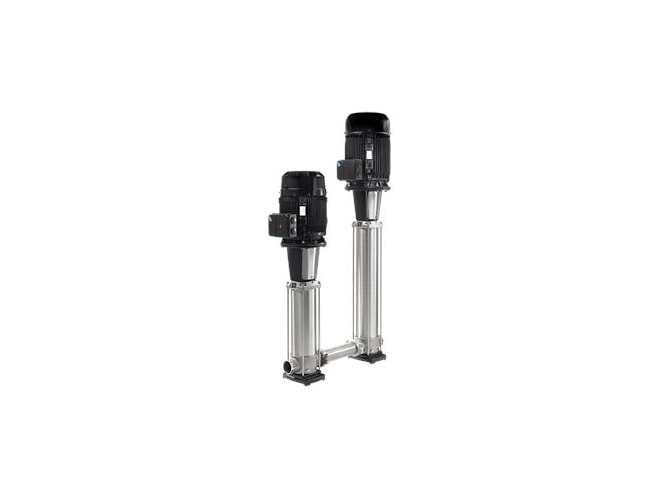

Vertical, non-self-priming, high-pressure multistage centrifugal pump with suction and discharge ports on the same level (in-line) enabling installation in a horizontal one-pipe system. Includes motor.

$5,830.76

Effective May 5th, 2025 Grundfos has added a 5% surcharge for all products. The surcharge will appear as a separate line item on the order.

Part Numbers

CRN5-24 S-P-T-V-HQQV 3x480D 60Hz
96521804
CRN 5-24 S-P-T-V-HQQV

Highlights...

CRN5-24 S-P-T-V-HQQV 3x480D 60Hz
By Grundfos
Call for Availability

Features

Pump speed on which pump data is based: 3525 rpm
Rated flow: 30.4 US gpm
Rated head: 602.4 ft
Stages: 24
Impellers: 24
Low NPSH: N
Primary shaft seal: HQQV
Code for shaft seal: HQQV
Approvals: CE,EAC,UKCA,SEPRO
Curve tolerance: ISO9906:2012 3B
Pump version: S
Model: A
Pump housing: Stainless steel
Impeller: Stainless steel
Material code: T
Code for rubber: V
Maximum ambient temperature: 140 °F
Max pressure at stated temperature: 725 psi / 194 °F
Type of connection: PJE
Size of connection: 1 1/4 inch
Flange size for motor: FF265
Connect code: P
Pumped liquid: Water
Liquid temperature range: -4 .. 194 °F
Selected liquid temperature: 68 °F
Density: 62.29 lb/ft³
Motor standard: IEC
Motor type: 132SB
Rated power - P2: 10 HP
Power (P2) required by pump: 10 HP
Main frequency: 60 Hz
Rated voltage: 3 x 400-480/690 V
Rated current: 13,8-12,0/8,10 A
Starting current: 750-1050 %
Cos phi - power factor: 0.88-0.82
Rated speed: 3500-3530 rpm
IE Efficiency class: NEMA Premium / IE3 60Hz
Motor efficiency at full load: 90.2 %
Motor efficiency at 3/4 load: 90.9-90.7 %
Motor efficiency at 1/2 load: 91.1-89.7 %
Number of poles: 2
Enclosure class (IEC 34-5): 55 Dust/Jetting
Insulation class (IEC 85): F
Built-in motor protection: PTC
Motor Number: 85905160
Frequency converter: None
Minimum efficiency index, MEI ≥: 0.57
Net weight: 186 lb
Gross weight: 197 lb
Country of origin: DK
Custom tariff no.: 8413.70.2040

Vertical, multistage centrifugal pump with suction and discharge ports on the same level. The pump head and base are in cast iron. All other wetted parts are in stainless steel (EN 1.4301)

Vertical, non-self-priming, high-pressure multistage centrifugal pump with suction and discharge ports on the same level (in-line) enabling installation in a horizontal one-pipe system. The chamber stack is turned upside-down to ensure that the shaft seal is not affected by the high pump discharge pressure. Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling and easy service and access. Power transmission is via a split coupling. Pipe connection is via PJE (Victaulic®) couplings.
