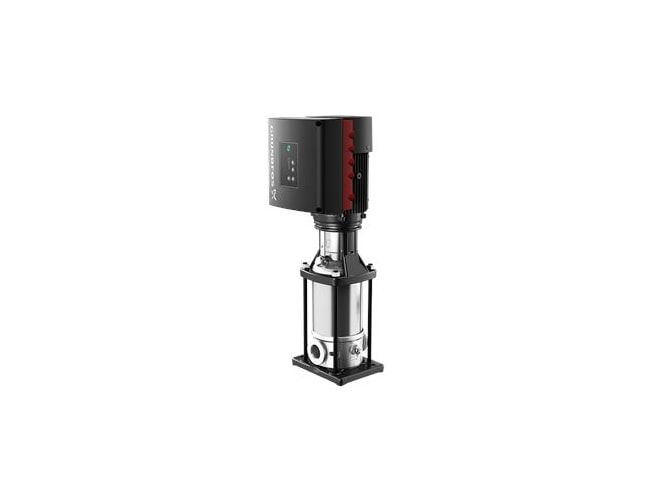

Grundfos CRNE3-23 Q-P-T-E-HQQE 3x380-500V 50/60Hz

Vertical, non-self-priming, high-pressure multistage centrifugal pump with suction and discharge ports on the same level (in-line) enabling installation in a horizontal one-pipe system.

$5,579.08
Effective May 5th, 2025 Grundfos has added a 5% surcharge for all products. The surcharge will appear as a separate line item on the order.
Part Numbers
  • CRNE3-23 Q-P-T-E-HQQE 3x380-500V 50/60Hz
  • 99050564
  • CRNE 3-23 Q-P-T-E-HQQE
Highlights...
  • CRNE3-23 Q-P-T-E-HQQE 3x380-500V 50/60Hz
  • By Grundfos
  • Call for Availability

Features

  • Pump speed on which pump data is based: 4100 rpm
  • Rated flow: 22 US gpm
  • Rated head: 602.7 ft
  • Head max: 964.9 ft
  • Stages: 23
  • Impellers: 23
  • Low NPSH: N
  • Primary shaft seal: HQQE
  • Code for shaft seal: HQQE
  • Approvals: CE,EAC,UKCA,CURUS,SEPRO
  • Approvals for drinking water: ACS
  • Curve tolerance: ISO9906:2012 3B
  • Pump version: Q
  • Model: A
  • Pump housing: Stainless steel
  • Impeller: Stainless steel
  • Material code: T
  • Code for rubber: E
  • Maximum ambient temperature: 122 °F
  • Max pressure at stated temperature: 725 psi / 250 °F
  • Type of connection: PJE
  • Size of connection: 1 1/4 inch
  • Flange size for motor: FT130
  • Connect code: P
  • Pumped liquid: Water
  • Liquid temperature range: -4 .. 248 °F
  • Selected liquid temperature: 68 °F
  • Density: 62.29 lb/ft³
  • Motor standard: IEC
  • Motor type: 112MC
  • Rated power - P2: 6.2 HP
  • Over/undersize motor: Standard motor size
  • Main frequency: 50 / 60 Hz
  • Rated voltage: 3 x 380-500 V
  • Service factor: 0.00
  • Rated current: 8.60-6.90 A
  • Cos phi - power factor: 0.92-0.88
  • Rated speed: 480-5900 rpm
  • IE Efficiency class: IE5
  • Enclosure class (IEC 34-5): IP55
  • Insulation class (IEC 85): F
  • Built-in motor protection: ELEC
  • Motor Number: 93094985
  • Control panel: HMI200 - Standard
  • Function Module: FM310 - Advanced
  • Frequency converter: Built-in
  • Minimum efficiency index, MEI ≥: 0.70
  • Net weight: 110 lb
  • Gross weight: 157 lb
  • Config. file no: 93131554
  • Danish VVS No.: 386011523
  • Country of origin: DK
  • Custom tariff no.: 8413.70.2040
Vertical, multistage centrifugal pump with suction and discharge ports on the same level. The pump head and base are in cast iron. All other wetted parts are in stainless steel (EN 1.4301)

Vertical, non-self-priming, high-pressure multistage centrifugal pump with suction and discharge ports on the same level (in-line) enabling installation in a horizontal one-pipe system. The chamber stack is turned upside-down to ensure that the shaft seal is not affected by the high pump discharge pressure. Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling and easy service and access. Power transmission is via a split coupling. Pipe connection is via PJE (Victaulic®) couplings. The pump is fitted with a 3-phase, fan-cooled, permanent-magnet, synchronous motor. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.
