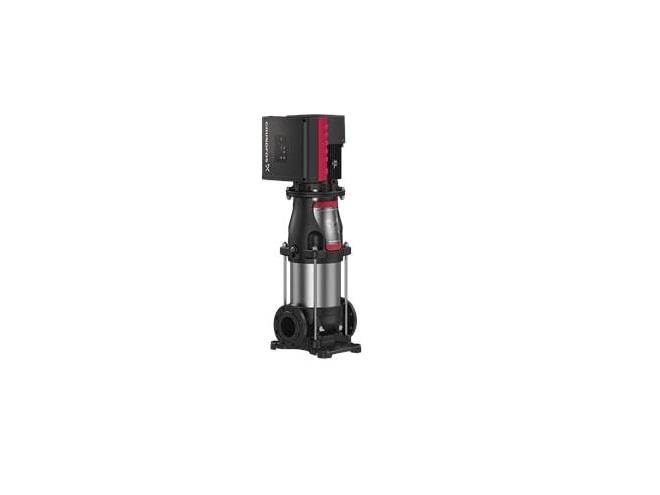

Grundfos 99145448 / CRE95-1-1 A-G-A-E-HQQE 440-480 60 HZ

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline).

$8,142.16
Part Numbers
  • CRE95-1-1 A-G-A-E-HQQE 440-480 60 HZ
  • 99145448
  • CRE 95-1-1 A-G-A-E-HQQE
Highlights...
  • CRE95-1-1 A-G-A-E-HQQE 440-480 60 HZ
  • By Grundfos
  • Call for Availability

Features

  • Rated pump speed: 3538 rpm
  • Rated flow: 500 US gpm
  • Rated head: 76.78 ft
  • Maximum head: 119.1 ft
  • Actual impeller diameter: 76.78 in
  • Impellers: 1
  • Number of reduced-diameter impellers: 1
  • Low NPSH: N
  • Pump orientation: Vertical
  • Shaft seal arrangement: Single
  • Primary shaft seal: HQQE
  • Code for shaft seal: HQQE
  • Approvals: CE
  • Approvals for drinking water: NSF/ANSI 61,NSF/ANSI 372
  • Curve tolerance: ISO9906:2012 3B
  • Pump version: A
  • Model: A
  • Base: Cast iron
  • Impeller: Stainless steel
  • Material code: A
  • Code for rubber: E
  • Bearing: WC/WC
  • Support bearing: Graflon
  • Maximum ambient temperature: 122°F
  • Maximum operating pressure: 262.06 psi
  • Max pressure at stated temperature: 232 psi / 250°F
  • Type of connection: ANSI
  • Size of suction port: 4 inch
  • Size of outlet port: 4 inch
  • Pressure rating for connection: 150 lb
  • Flange size for motor: 254TC
  • Connect code: G
  • Pumped liquid: Water
  • Liquid temperature range: -4 .. 248 °F
  • Selected liquid temperature: 68 °F
  • Density: 62.29 lb/ft³
  • Motor standard: NEMA
  • Motor type: 160H
  • Rated power: 15 HP
  • Power (P2) required by pump: 15 HP
  • Over/undersize motor: Standard motor size
  • Main frequency: 60 Hz
  • Rated voltage: 3 x 440-480 V
  • Service factor: 1.15
  • Rated current: 17.9-16.6 A
  • Cos phi - power factor: 0.92-0.91
  • Rated speed: 360-4000rpm
  • IE Efficiency class: IE5
  • Motor efficiency at full load: 92.3%
  • Enclosure class: IP55
  • Insulation class: F
  • Built-in motor protection: ELEC
  • Motor Number: 93079599
  • Function Module: FM310 - Advanced
  • Frequency converter: Built-in
  • Pressure sensor: N
  • Terminal box position: 6
  • DOE Pump Energy Index VL: 0.42
  • Net weight: 343 lb
  • Gross weight: 635 lb
  • Shipping volume: 44.2 ft³
  • Thrust handling device (Yes/No): N
  • Country of origin: US
  • Custom tariff no: 8413.70.2040

Vertical, multistage centrifugal pump with integrated frequency converter. The pump head and base are in cast iron - all other wetted parts are in stainless steel (EN 1.4301)

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges. The pump is fitted with a 3-phase, fan-cooled, permanent-magnet, synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.
