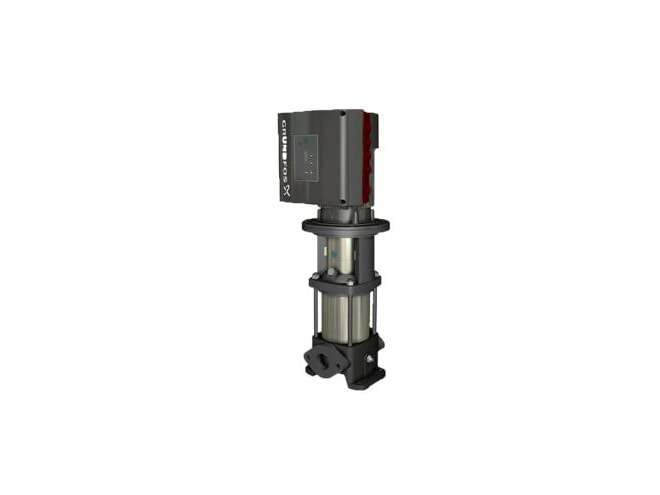

Grundfos CRE10-1 6-BN-A-E-HQQE 3x230 60Hz

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline).

$3,269.76
Effective May 5th, 2025 Grundfos has added a 5% surcharge for all products. The surcharge will appear as a separate line item on the order.
Part Numbers
  • CRE10-1 6-BN-A-E-HQQE 3x230 60Hz
  • 99449287
  • CRE 10-1 6-BN-A-E-HQQE
Highlights...
  • CRE10-1 6-BN-A-E-HQQE 3x230 60Hz
  • By Grundfos
  • Call for Availability

Features

  • Rated pump speed: 3466 rpm
  • Actual impeller diameter: 3.66 in
  • Stages: 1
  • Impellers: 1
  • Number of reduced-diameter impellers: 0
  • Low NPSH: N
  • Pump orientation: Vertical
  • Shaft seal arrangement: Single
  • Primary shaft seal: HQQE
  • Code for shaft seal: HQQE
  • Approvals: CE
  • Approvals for drinking water: NSF/ANSI 61
  • Curve tolerance: ISO9906:2012 3B
  • Pump version: 6
  • Model: A
  • Impeller: Stainless steel
  • Material code: A
  • Code for rubber: E
  • Maximum operating pressure: 145.04 psi
  • Max pressure at stated temperature: 145 psi / 250 °F
  • Type of connection: Oval / NPT(F)
  • Connect code: BN
  • Pumped liquid: Water
  • Liquid temperature range: -4 .. 248 °F
  • Selected liquid temperature: 68 °F
  • Density: 62.29 lb/ft³
  • Motor standard: NEMA
  • Power (P2) required by pump: 1.5 HP
  • Frequency converter: Built-in
  • Pressure sensor: N
  • DOE Pump Energy Index VL: 0.38
  • Net weight: 128 lb
  • Gross weight: 130 lb
  • Shipping volume: 0 ft³
  • Config. file no: 99366892
  • Country of origin: US
  • Custom tariff no.: 8413.70.2040
Vertical, multistage centrifugal pump with suction and discharge ports on the same level. The pump head and base are in cast iron - all other wetted parts are in stainless steel (EN 1.4301)

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via oval flanges with internal NPT threads.
