Grundfos 99917453 / CR15-2 A-B-A-V-HQQV 1x230 60 HZ

Name: Grundfos 99917453 / CR15-2 A-B-A-V-HQQV 1x230 60 HZ
Price: 3840.72 USD
Availability: OutOfStock

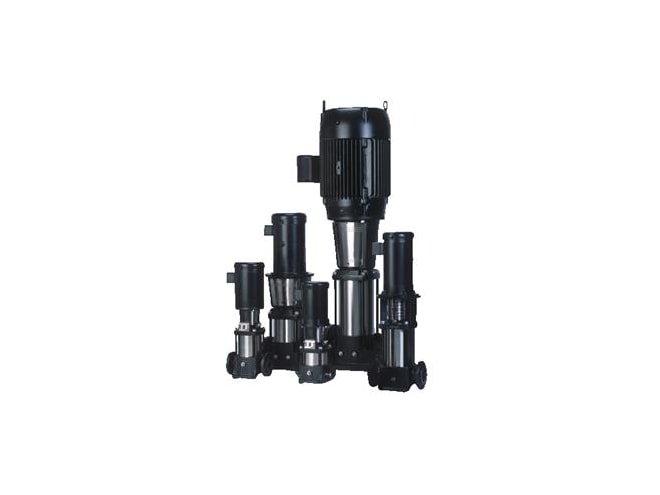

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Includes motor.

$3,840.72

Effective May 5th, 2025 Grundfos has added a 5% surcharge for all products. The surcharge will appear as a separate line item on the order.

Part Numbers

CR15-2 A-B-A-V-HQQV 1x230 60 HZ
99917453
CR 15-2 A-B-A-V-HQQV

Highlights...

CR15-2 A-B-A-V-HQQV 1x230 60 HZ
By Grundfos
Call for Availability

Features

Rated pump speed: 3468 rpm
Rated flow: 90.3 US gpm
Rated head: 103 ft
Maximum head: 135.5 ft
Actual impeller diameter: 4.13 in
Stages: 2
Impellers: 2
Number of reduced-diameter impellers: 0
Low NPSH: N
Pump orientation: Vertical
Shaft seal arrangement: Single
Primary shaft seal: HQQV
Code for shaft seal: HQQV
Approvals: CURUS
Curve tolerance: ISO9906:2012 3B
Pump version: A
Model: A
Cooling: IC 411
Base: Cast iron
Impeller: Stainless steel
Material code: A
Code for rubber: V
Bearing: SIC
Maximum ambient temperature: 104 °F
Maximum operating pressure: 145.04 psi
Max pressure at stated temperature: 145 psi / 194 °F
Type of connection: Oval / NPT(F)
Size of suction port: 2 inch
Size of outlet port: 2 inch
Pressure rating for connection: PN 10
Flange size for motor: 182TC
Connect code: B
Pumped liquid: Water
Liquid temperature range: -4 .. 194 °F
Selected liquid temperature: 68 °F
Density: 62.29 lb/ft³
Motor standard: NEMA
Motor type: WEG
Rated power - P2: 5 HP
Power (P2) required by pump: 5 HP
Main frequency: 60 Hz
Rated voltage: 1 x 208-230 V
Service factor: 1.15
Rated current: 31.7-25.3 A
Starting current: 800 %
Full load SF current: 31.7/22.4 A
Cos phi - power factor: 0.98
Rated speed: 3515 rpm
IE efficiency: 84.0%
Motor efficiency at full load: 84.0 %
Motor efficiency at 3/4 load: 82.0 %
Motor efficiency at 1/2 load: 76.4 %
Number of poles: 2
Enclosure class (IEC 34-5): IP55
Insulation class (IEC 85): F
Built-in motor protection: PTO
Motor Number: 99883304
Frequency converter: None
DOE Pump Energy Index CL: 0.91
Net weight: 218 lb
Gross weight: 234 lb
Shipping volume: 13.1 ft³
Country of origin: US
Custom tariff no.: 8413.70.2040

Vertical, multistage centrifugal pump with suction and discharge ports on the same level. The pump head and base are in cast iron. All other wetted parts are in stainless steel (EN 1.4301)(AISI 304)

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via oval flanges with internal NPT threads. The pump is fitted with a 1-phase, fan-cooled asynchronous motor.
