Grundfos 99917608 / CRN15-2 A-P-A-E-HQQE 3x230/460 60 HZ

Name: Grundfos 99917608 / CRN15-2 A-P-A-E-HQQE 3x230/460 60 HZ
Price: 4130.36 USD
Availability: OutOfStock

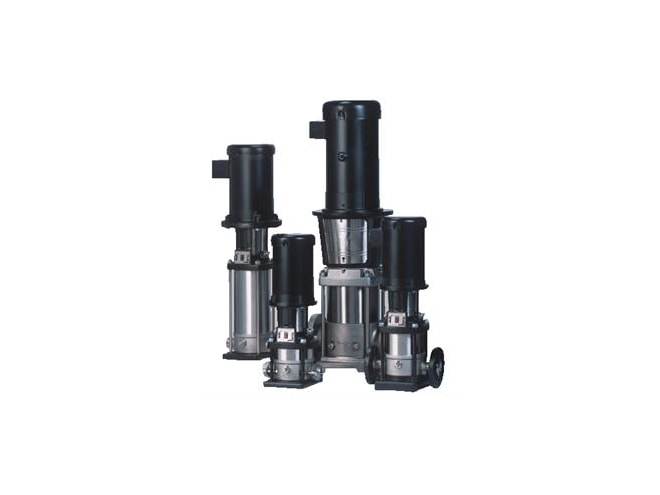

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Includes motor.

$4,130.36

Effective May 5th, 2025 Grundfos has added a 5% surcharge for all products. The surcharge will appear as a separate line item on the order.

Part Numbers

CRN15-2 A-P-A-E-HQQE 3x230/460 60 HZ
99917608
CRN 15-2 A-P-A-E-HQQE

Highlights...

CRN15-2 A-P-A-E-HQQE 3x230/460 60 HZ
By Grundfos
Call for Availability

Features

Rated pump speed: 3461 rpm
Rated flow: 90.3 US gpm
Rated head: 103.7 ft
Maximum head: 135.5 ft
Actual impeller diameter: 4.13 in
Stages: 2
Impellers: 2
Number of reduced-diameter impellers: 0
Low NPSH: N
Pump orientation: Vertical
Shaft seal arrangement: Single
Primary shaft seal: HQQE
Code for shaft seal: HQQE
Approvals: CURUS
Approvals for drinking water: NSF/ANSI 61
Curve tolerance: ISO9906:2012 3B
Pump version: A
Model: A
Cooling: IC 411
Base: Stainless steel
Impeller: Stainless steel
Material code: A
Code for rubber: E
Bearing: SIC
Maximum ambient temperature: 104 °F
Maximum operating pressure: 362.59 psi
Max pressure at stated temperature: 363 psi / 250 °F
Type of connection: PJE
Size of inlet connection: DN 50
Size of suction port: 2 inch
Size of outlet connection: DN 50
Size of outlet port: 2 inch
Pressure rating for connection: PN 50
Flange size for motor: 182TC
Connect code: P
Pumped liquid: Water
Liquid temperature range: -4 .. 248 °F
Selected liquid temperature: 68 °F
Density: 62.29 lb/ft³
Motor standard: NEMA
Motor type: WEG
Rated power - P2: 5 HP
Power (P2) required by pump: 5 HP
Main frequency: 60 Hz
Rated voltage: 3 x 230/460 V
Service factor: 1.15
Rated current: 11.8/5.9 A
Starting current: 780 %
Full load SF current: 13.6/6.79 A
Cos phi - power factor: 0.89
Rated speed: 3500 rpm
IE efficiency: IE3 88,5%
IE Efficiency class: IE3 / NEMA Premium
Motor efficiency at full load: 88.5 %
Motor efficiency at 3/4 load: 88.5 %
Motor efficiency at 1/2 load: 87.5 %
Number of poles: 2
Enclosure class (IEC 34-5): IP55
Insulation class (IEC 85): F
Built-in motor protection: NONE
Motor Number: 99882380
Frequency converter: None
DOE Pump Energy Index CL: 0.91
Net weight: 159 lb
Gross weight: 176 lb
Shipping volume: 8.26 ft³
Country of origin: US
Custom tariff no.: 8413.70.2040

Vertical, multistage centrifugal pump with suction and discharge ports on same the level. Pump materials in contact with the liquid are in high-grade stainless steel (EN 1.4401) (AISI 316)

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.
