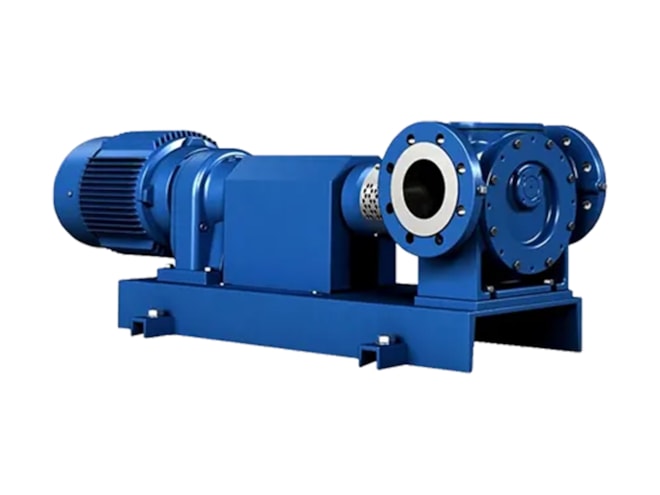

DESMI/Rotan HD Series Heavy Duty Cast Iron Internal Gear Pump

For handling corrosive liquids in the chemical processing, food, and pharmaceutical industries.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Request pricing below.
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Manual
Highlights...

Features

  • Capacity up to 1,100 GPM (250m3/h)
  • Speeds up to 1,750 RPM
  • Differential pressure up to 232 PSI (16bar)
  • Suction lift:
    • Up to 7.25 PSI (0.5bar) vacuum while priming
    • Up to 11.6 PSI (0.8bar) vacuum while pumping
  • Viscosity range up to 250,000 cSt
  • Temperature up to 482°F
  • 1 to 8in pump size (DN25 to DN200)
  • Flexible sealing options
  • "True" back pull-out design
  • Cast iron casing and rotor, carbon steel shaft
  • Idler bearing and main bearing lubricated by pump medium

The DESMI/Rotan HD Series Heavy Duty Cast Iron Internal Gear Pump is built to handle a broad range of viscous, non-corrosive liquids for industrial applications. Engineered for high-viscosity fluids and harsh operating conditions, HD pumps are recognized for their sturdy, straightforward design, ensuring dependable performance, simplified maintenance, and extended service life. Their internal gear mechanism provides consistent, low-pulsation flow even in applications with fluctuating temperatures or variable fluid characteristics. Available with a angular configuration, the DESMI/Rotan HD offers versatile installation options, especially in systems where space or layout constraints are a concern. The HD is suited for a variety of applications from asphalt and adhesives to oils and resins.

This product can be used in the following applications:

Manufacturer Stock

Part Number Price Available
HD26EM-1U3B2+3314-020HA2MC
Show Configuration
Call for pricing 60 in stock
HD26EMR-1U3B2+3314-020HA2QC
Show Configuration
Call for pricing 56 in stock
HD33EM-1U3B2+3314-020HA2MC
Show Configuration
Call for pricing 34 in stock
HD51EFM-1U3B2+3314-035HA2MC
Show Configuration
Call for pricing 30 in stock
HD101EFM-1U3B2+3314-050HA2MC
Show Configuration
Call for pricing 25 in stock
HD81EFM-1U3B2+3314-050HA2MC
Show Configuration
Call for pricing 19 in stock
HD41EM-1U3B2+3314-025HA2MC
Show Configuration
Call for pricing 18 in stock
HD66EFM-1U3B2+3314-035HA2MC
Show Configuration
Call for pricing 8 in stock
HD26EM-1U8B2+3314-020HA2QC
Show Configuration
Call for pricing 7 in stock
HD51EFM-1U8B2+3314-035HA2QC
Show Configuration
Call for pricing 4 in stock
HD126EFM-1U3B2+3314-060HA2MC
Show Configuration
Call for pricing 2 in stock
HD151EFM-1U3B2+3314-060HA2MC
Show Configuration
Call for pricing 2 in stock
HD201EFM-1U3B2+3314-085HA2MC
Show Configuration
Call for pricing 2 in stock
HD26EFM-1U3B2+3314-020HA2QC
Show Configuration
Call for pricing 2 in stock
HD26EM-1U3B2+3304-020UA2MC
Show Configuration
Call for pricing 2 in stock
HD101EFM-1U2B2+3314-050HA2QC
Show Configuration
Call for pricing 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3 to 4 weeks". Click here to select options
