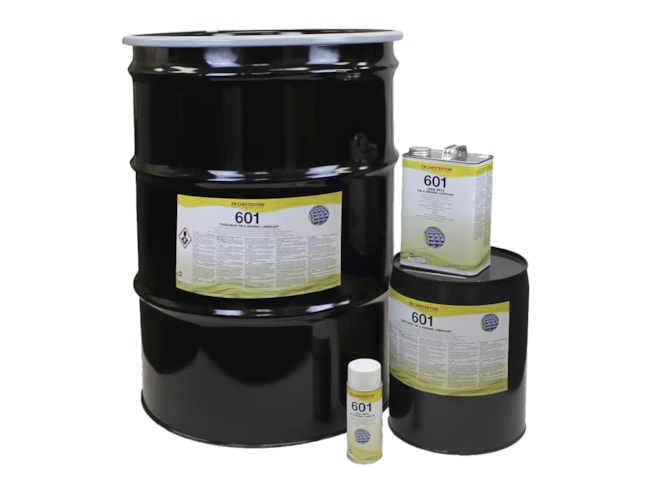

Chesterton 601 Chain Drive Pin and Bushing Lubricant

Light oil that penetrates between the close clearance of chain drive bushings and pins.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $22.57
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • Flash Point (ASTM D 56): 127°C (260°F)
  • Specific Gravity: 0.9
  • ISO VG (ASTM D2422, DIN 51 519): 22
  • Viscosity (ASTM D 445, DIN 51 561)
    • 40°C (104°F) cSt (mm²/s): 22
    • 100°C (212°F) cSt (mm²/s): 4
  • Operating Temperature: -23°C to 150°C (-10°F to 300°F)
  • Coefficient of Friction: 0.06
  • NSF H2 registration number 133979 (bulk) and 133927 (aerosol)

The Chesterton 601 Chain Drive Pin and Bushing Lubricant is an oil formulated with selective compounds to effectively penetrate and lubricate chain drive pins and bushings. 601 is specially formulated to penetrate between the close clearance of chain drive bushings and pins, wire ropes, and cables to provide critical lubrication. After penetrating close metal to metal tolerances, 601 provides a long lasting, non-drying film which effectively lubricates metal surfaces so they run smoothly with far less wear.

Applications:

  • Chain-driven machinery
  • Conveyors
  • Packaging equipment
  • Hoist chains
  • Forklift trucks
  • Chain saws
