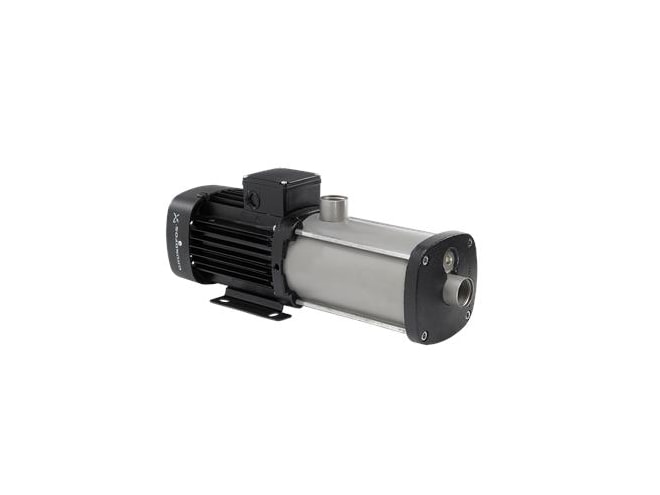

Grundfos 96946008 / CM10-2 A-S-I-V-AQQV E-A-A-N

Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. Does not include motor.

$1,407.12
Part Numbers
  • CM10-2 A-S-I-V-AQQV E-A-A-N
  • 96946008
  • CM 10-2 A-S-I-V-AQQV E-A-A-N
Highlights...
  • CM10-2 A-S-I-V-AQQV E-A-A-N
  • By Grundfos
  • Call for availability

Features

  • Pump speed on which pump data are based: 3480 rpm
  • Rated flow: 52.8 US gpm
  • Rated head: 116.3 ft
  • Impellers: 2
  • Primary shaft seal: AQQV
  • Code for shaft seal: AQQV
  • Approvals: CE,CULUS,EAC,CURUS,UKCA
  • Approvals for drinking water: WRAS,ACS,NSF61,UBA
  • Curve tolerance: ISO9906:2012 3B
  • Pump version: A
  • Model: A
  • Pump housing: Stainless steel
  • Impeller: Stainless steel
  • Material code: I
  • Code for rubber: V
  • Range of ambient temperature: -4 .. 131 °F
  • Maximum operating pressure: 232.06 psi
  • Max pressure at stated temperature: 232 psi / 194 °F
  • Type of connection: NPT(F)
  • Size of suction port: 1 1/2 inch
  • Size of outlet port: 1 1/2 inch
  • Outlet position: 12
  • Connect code: S
  • Pumped liquid: Water
  • Liquid temperature range: -4 .. 194 °F
  • Selected liquid temperature: 68 °F
  • Density: 62.29 lb/ft³
  • Motor standard: NEMA
  • Frame size: 90HA
  • IE efficiency class: IE3 / NEMA Premium
  • Rated power - P2: 3.35 HP
  • Main frequency: 60 Hz
  • Suitable for 50/60 Hz (Yes/No): N
  • Rated voltage: 3 x 208-230YY/440-480Y V
  • Service factor: 1.00
  • Rated current: 9,70-9,40/4,60-4,65 A
  • Starting current: 830-870 %
  • Rated speed: 3485-3505 rpm
  • Enclosure class (IEC 34-5): IP55
  • Insulation class (IEC 85): F
  • Ex-protection standard: NONE
  • Cable included (Yes/No): N
  • Frequency converter: None
  • Terminal box position: 12
  • Minimum efficiency index, MEI ≥: 0.52
  • Net weight: 63 lb
  • Gross weight: 68.5 lb
  • Country of origin: MX
  • Custom tariff no.: 8413.70.2040
CM is a reliable, quiet and compact horizontal end-suction pump. The modular pump design makes it easy to make customized solutions. CM is available in cast iron and stainless steel.

Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. Pump materials in contact with the liquid are in stainless steel. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal NPT pipe threads. The pump is fitted with a 3-phase, foot-mounted, fan-cooled asynchronous motor.
