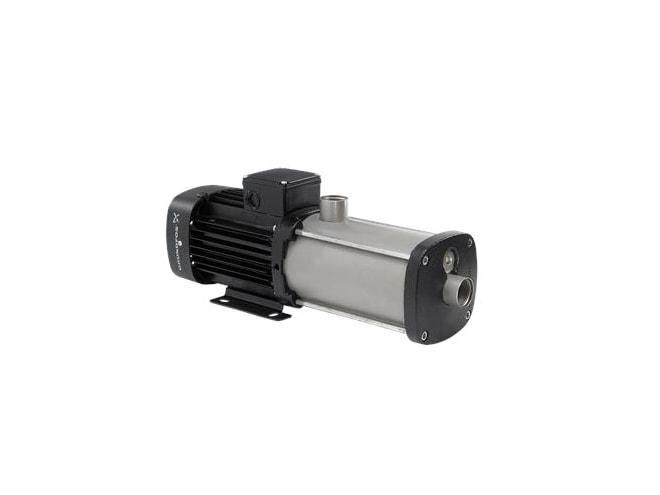

Grundfos 97568245 / CM1-2 A-S-G-V-AQQV E-A-A-N

Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. Does not include motor.

$946.40
Part Numbers
  • CM1-2 A-S-G-V-AQQV E-A-A-N
  • 97568245
  • CM 1-2 A-S-G-V-AQQV E-A-A-N
Highlights...
  • CM1-2 A-S-G-V-AQQV E-A-A-N
  • By Grundfos
  • Call for availability

Features

  • Pump speed on which pump data are based: 3480 rpm
  • Rated flow: 8.98 US gpm
  • Rated head: 59.09 ft
  • Impellers: 2
  • Primary shaft seal: AQQV
  • Code for shaft seal: AQQV
  • Approvals: CE,CULUS,EAC,CURUS,UKCA
  • Approvals for drinking water: WRAS,ACS,NSF61,UBA
  • Curve tolerance: ISO9906:2012 3B
  • Pump version: A
  • Model: A
  • Pump housing: Stainless steel
  • Impeller: Stainless steel
  • Material code: G
  • Code for rubber: V
  • Range of ambient temperature: -4 .. 131 °F
  • Maximum operating pressure: 232.06 psi
  • Max pressure at stated temperature: 232 psi / 194 °F
  • Type of connection: NPT(F)
  • Size of suction port: 1 inch
  • Size of outlet port: 1 inch
  • Outlet position: 12
  • Connect code: S
  • Pumped liquid: Water
  • Liquid temperature range: -4 .. 194 °F
  • Selected liquid temperature: 68 °F
  • Density: 62.29 lb/ft³
  • Motor standard: NEMA
  • Frame size: 71AA
  • Rated power - P2: 0.577 HP
  • Main frequency: 60 Hz
  • Suitable for 50/60 Hz (Yes/No): N
  • Rated voltage: 3 x 208-230YY/440-480Y V
  • Service factor: 1.00
  • Rated current: 1,9-1,7/1,0-0,8 A
  • Rated speed: 3360-3420 rpm
  • Enclosure class (IEC 34-5): IP55
  • Insulation class (IEC 85): F
  • Ex-protection standard: NONE
  • Cable included (Yes/No): N
  • Frequency converter: None
  • Terminal box position: 12
  • Minimum efficiency index, MEI ≥: 0.68
  • Net weight: 25.7 lb
  • Gross weight: 31.2 lb
  • Country of origin: MX
  • Custom tariff no.: 8413.70.2040
CM is a reliable, quiet and compact horizontal end-suction pump. The modular pump design makes it easy to make customized solutions. CM is available in cast iron and stainless steel.

Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. Pump materials in contact with the liquid are in high-grade stainless steel. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal NPT pipe threads. The pump is fitted with a 3-phase, foot-mounted, fan-cooled asynchronous motor.
