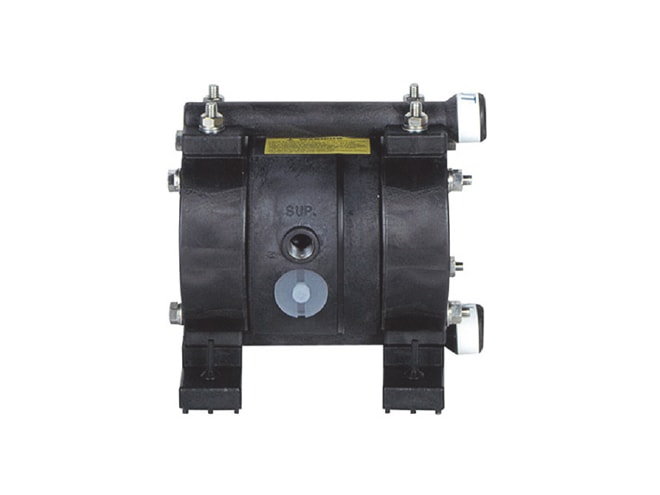

Price Pump Y Series 1/4in Non-Metallic Air Operated Diaphragm Pump

Polypropylene or Kynar pump with Teflon elastomer.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $504.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • 3.4 GPM with 100 psi air supply maximum flow
  • 100 psi maximum air inlet pressure
  • 100 µ maximum spherical solids size
  • 180°F maximum liquid temperature - Polypropylene
  • 212° F maximum liquid temperature - Kynar
  • Oil-less, quiet operation
  • Submersible

The Price Pump Y Series Air Operated Diaphragm Pump incorporates Price Pump's patented Y-series technology featuring a non-centering, spring-assisted shifter that eliminates stalling and ensures positive valve operation. The oil-less design prevents fluid contamination while minimizing maintenance requirements and reducing exhaust noise. Temperature capabilities range from 40°F minimum to 180°F for polypropylene configurations and 212°F for Kynar models when equipped with Teflon diaphragms. The pump provides 5-foot maximum suction lift and can operate in submersible applications with proper exhaust line positioning.

Installation requires only air supply and liquid line connections without complex controls, making it highly portable at 4.0-4.7 pounds shipping weight. The pump serves diverse industries including aircraft, automotive, chemical processing, marine, and manufacturing applications where chemical compatibility, contamination-free operation, and reliable performance in space-constrained environments are essential requirements.
