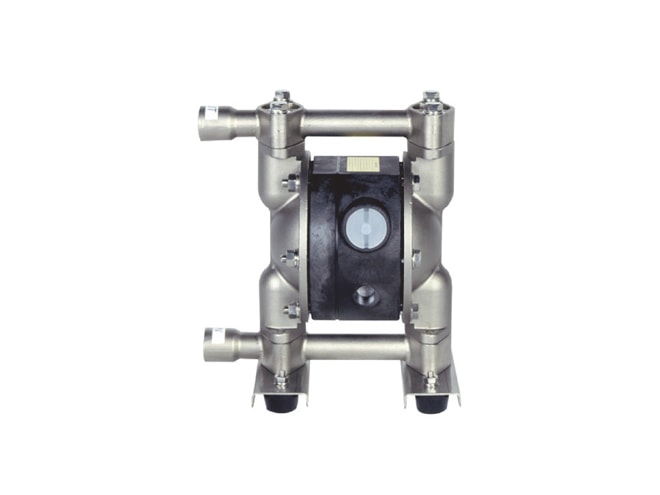

Price Pump Y Series 1/2in Metallic Air Operated Diaphragm Pump

Flows to 15 GPM, heads to 240ft.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $934.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • 100 PSI maximum air inlet pressure
  • 1/2 FNPT, BSP suction (bottom)
  • 1/2 FNPT, BSP discharge (top)
  • Neoprene, Buna-N, Santoprene, and Teflon elastomers

The Price Pump Y Series 1/2in Metallic Air Operated Diaphragm Pump is available in aluminum and stainless steel configurations for applications requiring higher flow rates and metallic wetted surfaces. Both models feature 1/2-inch FNPT suction and discharge connections with BSP threading options and operate with 1/4-inch FNPT air inlet and 3/8-inch FNPT air exhaust connections.

This AOD offers maximum flow rates of 15 GPM when supplied with 100 PSI compressed air and offering 0.031 gallon displacement per stroke with Teflon diaphragms. The pump can handle spherical solids up to 1/32 inch in diameter and maintains 5-foot maximum suction lift capability. Temperature operating ranges vary by elastomer selection, with Buna-N and Neoprene rated to 180°F, while Santoprene and Teflon configurations operate up to 212°F, all with a low temperature limit of 40°F.
