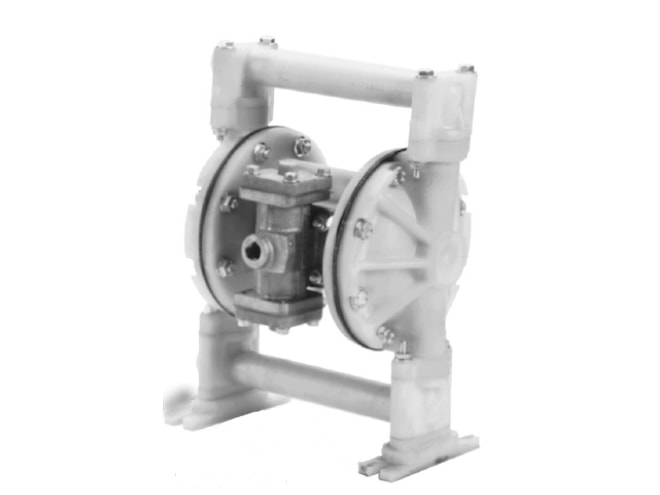

Price Pump 1/2in Non-Metallic Air Operated Diaphragm Pump

Flows to 15 GPM, heads to 240ft.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $866.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • 125 PSI maximum air inlet pressure
  • 1/2 FNPT, BSP suction (bottom)
  • 1/2 FNPT, BSP discharge (top)
  • Neoprene, Buna-N, Santoprene, Viton, EPR, and Teflon elastomers
  • Polypropylene or Kynar (PVDF) wet end material

The Price Pump 1/2in Non-Metallic Air Operated Diaphragm Pump delivers maximum flow rates of 15 GPM when supplied with up to 125 PSI compressed air. Displacement per stroke varies by diaphragm type, with elastomer diaphragms providing 0.016 gallon displacement and Teflon diaphragms offering 0.014 gallon displacement. The pump can handle spherical solids up to 1/8 inch in diameter and provides superior suction lift capabilities of 13 feet dry prime and 21 feet wet prime.

The pump incorporates a "posi-shift" tandem spool air distribution valve for reliable operation in low-pressure and start/stop applications, with fewer parts and no O-rings for easier maintenance. The oil-less design eliminates metal-to-metal wearing surfaces and features an externally serviceable air valve for minimal downtime maintenance.
