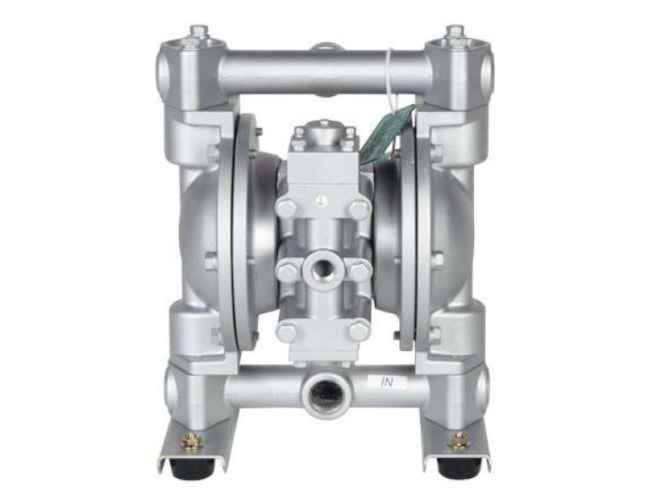

Price Pump Y Series 3/4in Metallic Air Operated Diaphragm Pump

Flows to 27.3 GPM, heads to 240ft.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $1,106.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • 100 PSI maximum air inlet pressure
  • 3/4 FNPT, BSP suction (bottom)
  • 3/4 FNPT, BSP discharge (top)
  • Neoprene, Buna-N, Santoprene, EPR, Viton, and Teflon elastomers

The Price Pump Y Series 3/4in Metallic Air Operated Diaphragm Pump incorporates a patented non-centering, spring-assisted shifter system that ensures reliable operation without the need for pre-packing or extended lubrication, while maintaining oil-less operation to prevent contamination and reduce maintenance costs.

The pump features a maximum flow rate of 27.3 GPM when supplied with 100 PSI air pressure, with displacement capabilities of 0.14 gallons per stroke for elastomer diaphragms and 0.10 gallons per stroke for Teflon diaphragms. The pump can handle spherical solids up to 1/16 inch in size and operates within a temperature range from 40°F to as high as 248°F depending on the elastomer material selected. Standard suction lift capabilities reach 18 feet for elastomer-fitted units and 12 feet for Teflon-fitted configurations.
