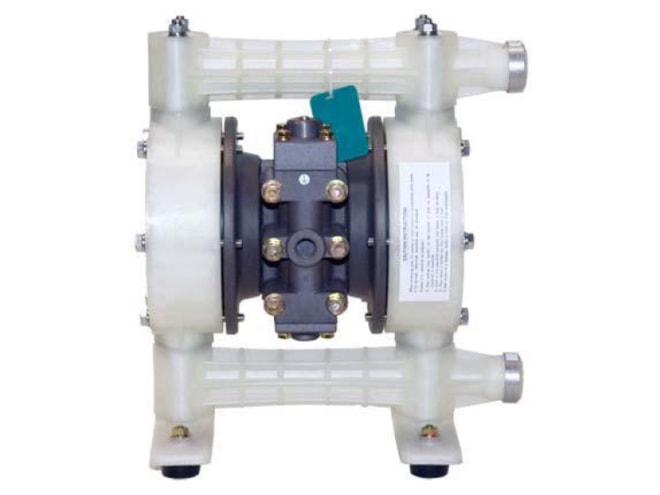

Price Pump Y Series 3/4in Non-Metallic Air Operated Diaphragm Pump

Flows to 27.3 GPM, heads to 240ft.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $1,106.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • 100 PSI maximum air inlet pressure
  • 3/4 FNPT, BSP suction (bottom)
  • 3/4 FNPT, BSP discharge (top)
  • Neoprene, Buna-N, Santoprene, EPR, Viton, and Teflon elastomers
  • Polypropylene pump body

The Price Pump Y Series 3/4in Non-Metallic Air Operated Diaphragm Pump incorporates the same patented non-centering, spring-assisted shifter system found in the Y series, ensuring reliable stall-free operation without requiring pre-packing or extended lubrication while maintaining oil-less operation to prevent contamination.

This pump delivers a maximum flow rate of 27.3 GPM with 100 PSI air supply and displacement capabilities of 0.14 gallons per stroke for elastomer diaphragms and 0.10 gallons per stroke for Teflon diaphragms. The pump can handle spherical solids up to 1/16 inch in size and operates within a temperature range from 40°F to 180°F across all elastomer options, providing a more uniform temperature rating compared to the metallic models. Standard suction lift capability reaches 18 feet for dry prime applications.
