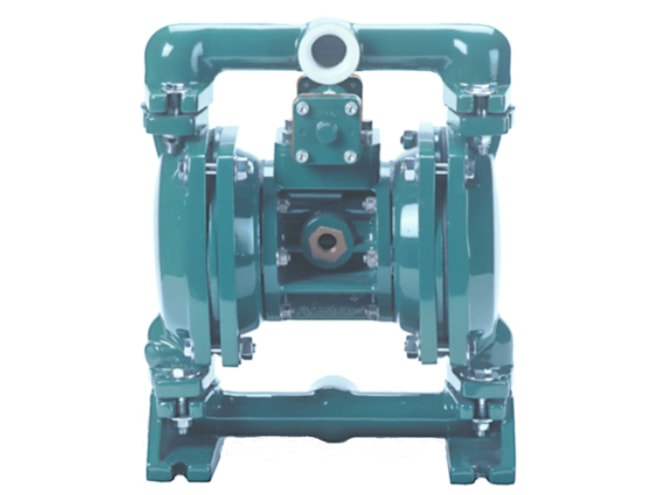

Price Pump 1in Metallic Air Operated Diaphragm Pump

Flows to 50 GPM, heads to 250ft.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $1,336.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • 125 PSI maximum air inlet pressure
  • 1 FNPT, BSP suction (bottom)
  • 1 FNPT, BSP discharge (top)
  • Neoprene, Buna-N, Santoprene, Viton, EPR, and Teflon elastomers
  • Aluminum, cast iron, or stainless steel pump material

The Price Pump 1in Metallic Air Operated Diaphragm Pump features a "posi-shift" tandem spool air distribution valve that ensures reliable operation in low pressure and start/stop applications while incorporating fewer parts and no o-rings for simplified maintenance. The externally serviceable air valve allows for routine maintenance without complete pump disassembly.

The pump features a maximum flow rate of 50 GPM with a maximum air inlet pressure of 125 PSI. The pump delivers 0.18 gallons per stroke with elastomer diaphragms and 0.12 gallons per stroke with Teflon diaphragms, while handling spherical solids up to 1/8 inch in size. Operating temperature ranges from 32°F to as high as 248°F depending on elastomer selection, with the same range of materials including Buna-N, Neoprene, Nordel, Santoprene, Teflon, and Viton available for various chemical compatibility requirements.
