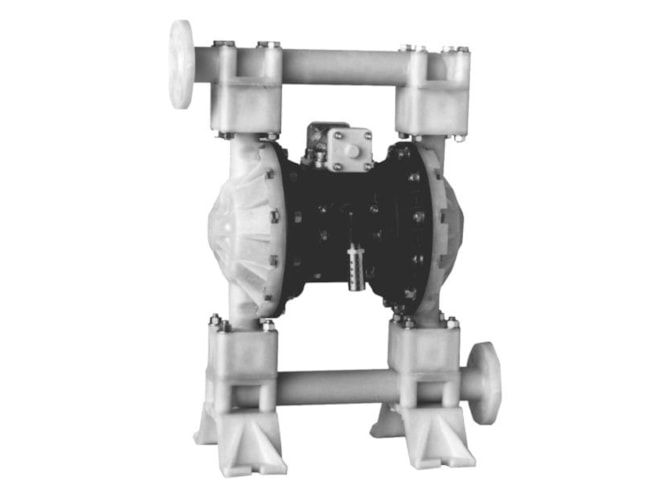

Price Pump 1in Non-Metallic Air Operated Diaphragm Pump

Flows to 50 GPM, heads to 250ft.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $1,478.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • 125 PSI maximum air inlet pressure
  • 1 FNPT, BSP suction (bottom)
  • 1 FNPT, BSP discharge (top)
  • Neoprene, Buna-N, Santoprene, Viton, EPR, and Teflon elastomers
  • Polypropylene or Kynar pump material

The Price Pump 1in Non-Metallic Air Operated Diaphragm Pump is equipped with 1-inch FNPT or BSP suction and discharge connections, 3/8-inch FNPT air inlet, and 1/2-inch FNPT air exhaust ports. The compact design incorporates a fiberglass air valve housing with aluminum air chambers and anodized aluminum spool housing.

The AOD1 series incorporates several key design features including a stall-free "posi-shift" tandem spool air distribution valve that ensures reliable operation in low-pressure and start/stop applications. The oil-less air valve design eliminates metal-to-metal wearing surfaces and prevents environmental contamination. The externally serviceable air valve allows for routine maintenance without pump disassembly, minimizing downtime. The pump offers various elastomer options including Neoprene, Buna-N, Nordel, Teflon, Santoprene, and Viton to match specific application requirements across industries ranging from automotive and chemical processing to marine and construction applications.
