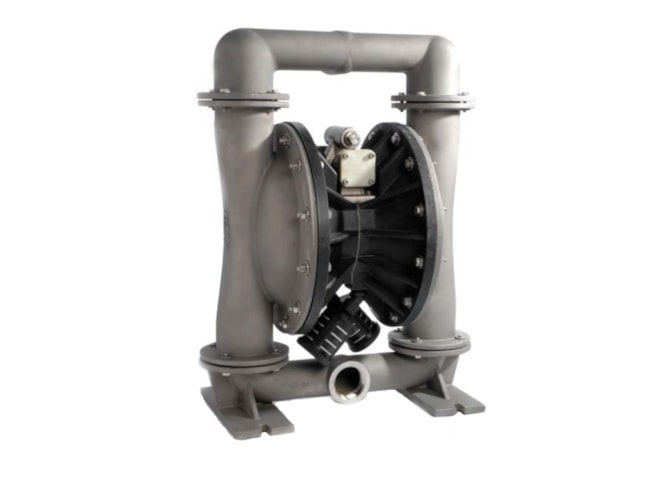

Price Pump 2in Metallic Bolted Air Operated Diaphragm Pump

170 GPM maximum flow, heads to 270ft.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $2,349.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • 125 PSI maximum air inlet pressure
  • 2 ANSI flange/DIN suction (bottom)
  • 2 ANSI flange/DIN discharge (top)
  • Neoprene, Buna-N, Santoprene, EPR, Viton, and Teflon elastomers
  • Aluminum or stainless steel pump material

The Price Pump 2in Metallic Bolted Air Operated Diaphragm Pump offers a maximum flow rate of 170 GPM with displacement per stroke of 0.85 gallons for elastomer diaphragms and 0.80 gallons for Teflon diaphragms. The pump has multiple elastomer options including Buna-N, Neoprene, Nordel, Santoprene, Teflon, and Viton with maximum liquid temperature limits ranging from 180°F to 248°F depending on material selection. Suction lift capabilities range from 12 to 22 feet based on priming conditions and elastomer type.

The pump operates with a maximum air inlet pressure of 125 PSI and accommodates spherical solids up to 3/8 inch in diameter. Suitable for industries including chemical processing, automotive, marine, and manufacturing sectors.
