Price Pump 3in Metallic Bolted Air Operated Diaphragm Pump

230 GPM maximum flow, heads to 270ft.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $3,239.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • 125 PSI maximum air inlet pressure
  • 3 FNPT, BSP suction (bottom)
  • 3 FNPT, BSP discharge (top)
  • Neoprene, Buna-N, Santoprene, EPR, Viton, and Teflon elastomers
  • Aluminum or stainless steel pump material

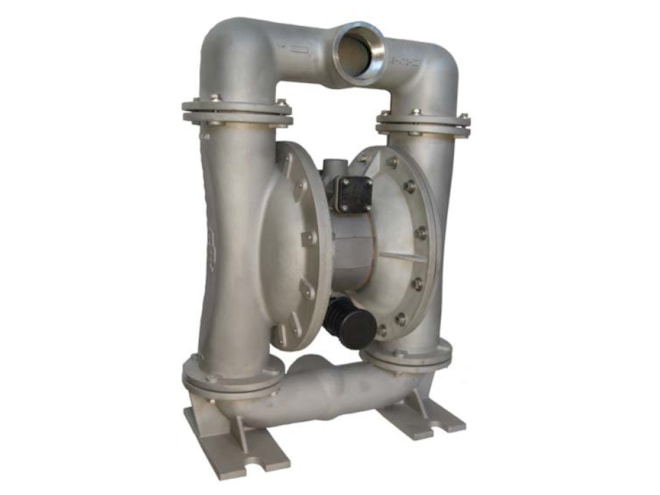

The Price Pump 3in Metallic Bolted Air Operated Diaphragm Pump features a patented non-centering, spring-assisted shifter that ensures positive shift operation every time, eliminating the need for pre-packing or extended lubrication. The oil-less design features no metal-to-metal wearing surfaces, preventing environmental contamination.

The pump operates with a maximum air inlet pressure of 125 PSI and accommodates spherical solids up to 7/16 inch in diameter. Multiple elastomer options are available including Buna-N, Neoprene, Nordel, Santoprene, Teflon, and Viton.
