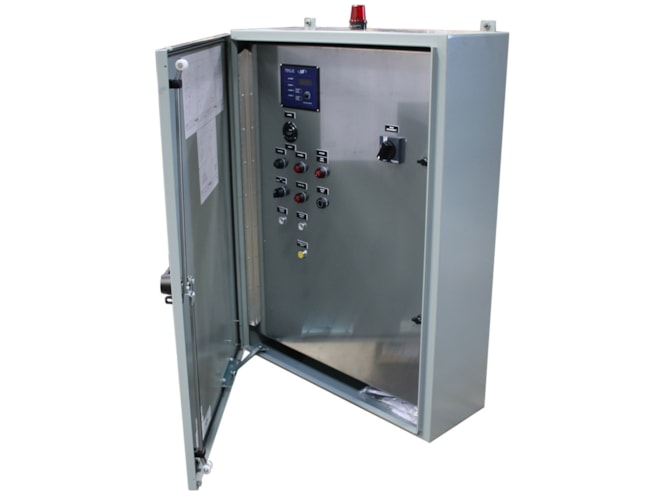

Hevvy/Toyo HPS Series Soft Start Control Panel

60 to 248 amperage rating options, for 460 or 575 volt pumps, motor thermal protection seal failure detection, incoming phase and voltage monitoring.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our pump experts at 1-802-255-4003. We’re open Mo-Fr 8:30am to 5:00pm ET.
Starting Price: $17,831.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Product Specs
Highlights...

Features

  • NEMA 4 steel enclosure
  • Incoming Circuit Breaker with Lockable Disconnect
  • Incoming Phase and Voltage Monitoring
  • Motor Thermal Protection
  • Seal Failure Detection
  • Alarm Light and Alarm Horn (83-85dB)
  • Manual Alarm Reset
  • Pump Run Light
  • Push Button Controls
  • DCS Control Ready
  • Float Switch Ready
  • Aluminium Dead-front Inner Door

Tech Specs

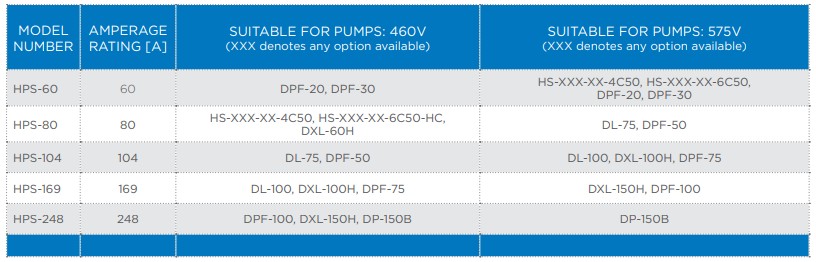

Hevvy/Toyo HPS Series Soft Start Control Panel Tech Specs

The Hevvy/Toyo HPS Series Soft Start Control Panel allows for more frequent start/stop cycles by reducing the inrush current during startups, keeping the motor cooler. In addition to reducing the risk of overheating, the HPS series reduces the impact of start/stop cycles on piping systems by reducing water hammer and cavitation experienced during starting.
