Chesterton 16K/17K Bearing Band Strip
High performance replaceable bearing strip for presses.
Overview
Features
- AWC640
- -40 to 250°F (-40 to 121°C) operating temperature
- 50,000psi (345mpa) compressive strength
- 14,500psi (100mpa) permissible compressive load
- 200fpm (1m/sec)
Description

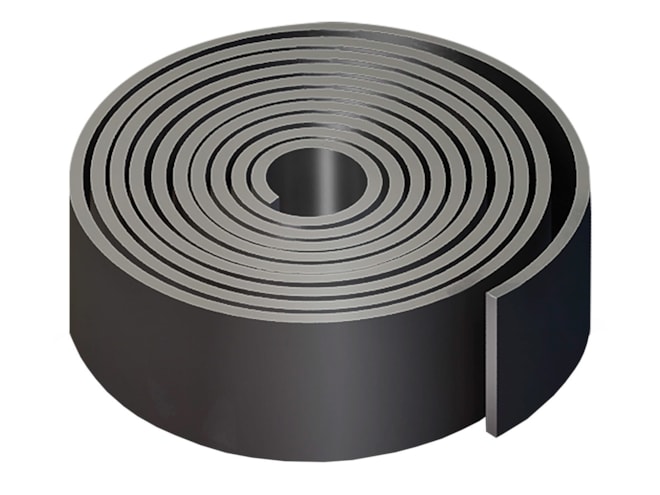

The Chesterton 16K/17K Bearing Band Strip is the solution to cylinder re-machining and repairs for large diameter hydraulic or pneumatic equipment. Extend seal and equipment life by minimizing metal to metal scoring and reducing radial movement with the split, replaceable bearing.

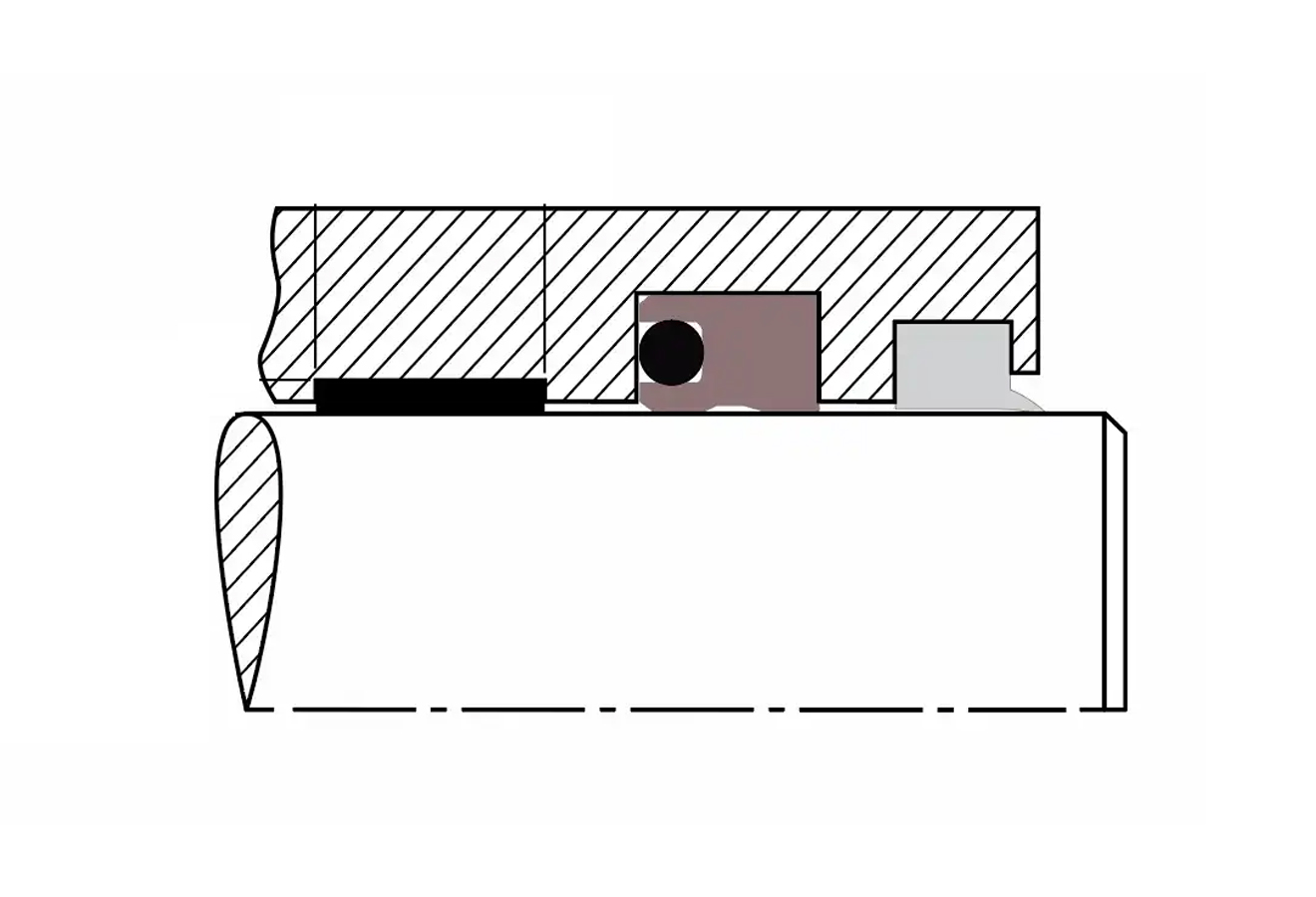

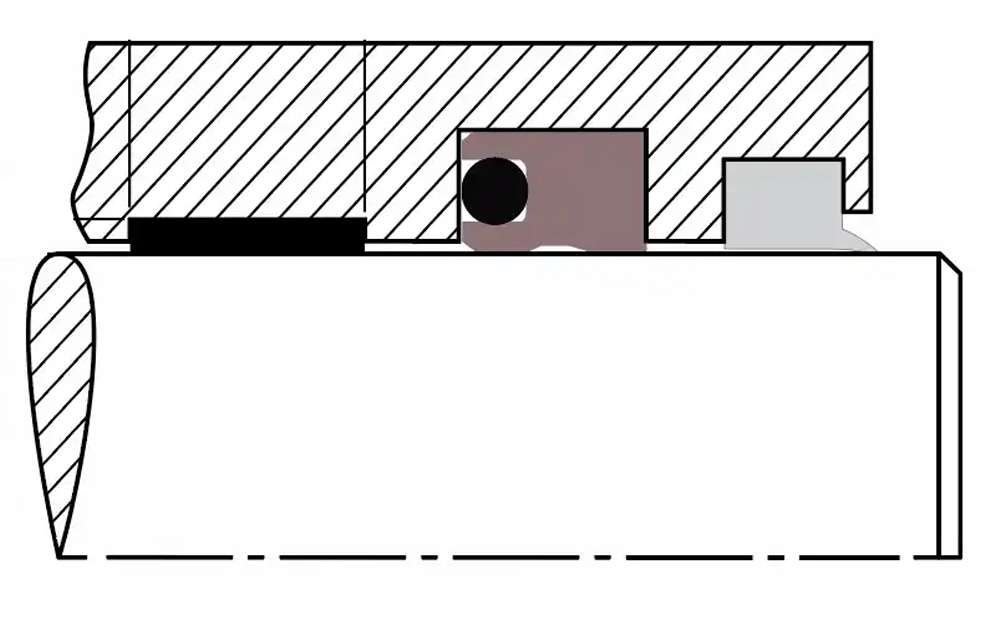

The split, continuous coil design is made from a combination of composite polyester resin reinforced with synthetic fibers specifically designed to support heavy loads. Suitable for use on rams and pistons in reciprocating applications due to their exceptional physical properties and built-in lubricants.
