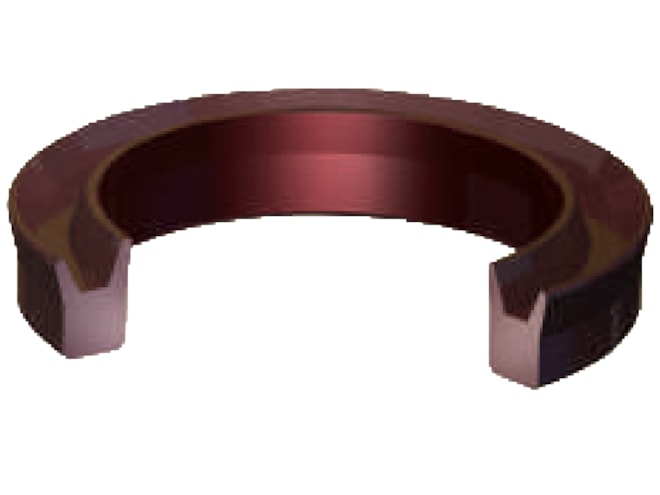

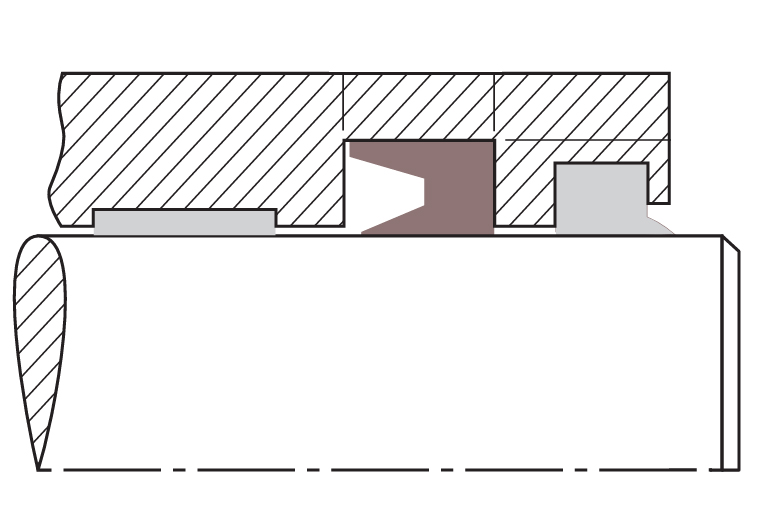

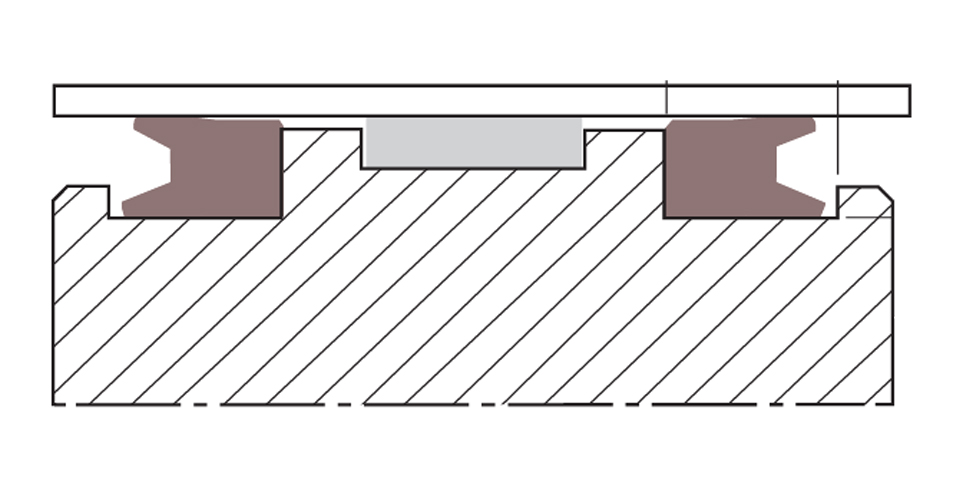

Chesterton 23K Pneumatic U-Cup Rod and Piston Seal
Pneumatic U-Cup rod and piston seal for low pressure pneumatic applications.
Overview
Features
- AWC704 (FKM)
- -20 to 400°F (-30 to 200°C)
- 125psi (0.9mpa)
- 300fpm (1.5 msec)
- AWC800 (EU)
- -60 to 185°F (-50 to 85°C)
- 125psi (0.9mpa)
- 185fpm (0.90msec)
- AWC825 (EU)
- -40 to 185°F (-40 to 85°C)
- 125psi (0.9mpa)
- 100fpm (0.50msec)
- AWC830 (EU)
- -30 to 165°F (-35 to 75°C)
- 125psi (0.9mpa)
- 185fpm (0.90msec)
- AWC860 (EU)
- -60 to 250°F (-50 to 120°C)
- 125psi (0.9mpa)
- 250fpm (1.25msec)
Description
The Chesterton 23K Pneumatic U-Cup Rod and Piston Seal's incorporates unique, dynamic lip geometry that provides the optimal sealing force require for low pressure pneumatic applications. The radiused lip design maintains continuous lubricating film, minimizing operating temperature and wear.
